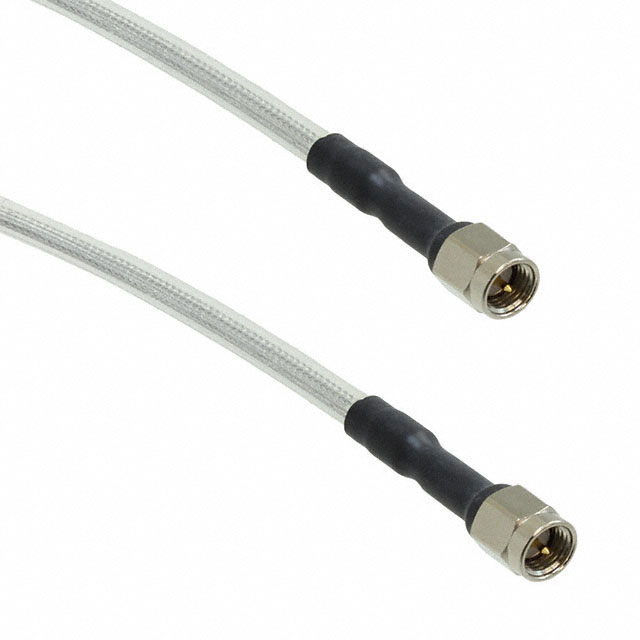

FC50-01-CA006
ActiveCicoil
CBL ASSY SMA PLUG TO PLUG 6'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FC50-01-CA006
ActiveCicoil
CBL ASSY SMA PLUG TO PLUG 6'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FC50-01-CA006 | FC50-01 Series |
|---|---|---|
| 1st Connector | SMA Plug | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Contact Gender | Male | Male |
| 2nd Connector | SMA Plug | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Contact Gender | Male | Male |
| Color | Clear | Clear |
| Features | Shielded | Shielded |
| Length | 6 ft | 6 ft |
| Length | 72 in | 36 - 72 in |
| Length | 1.8 m | 1.8 - 91.44 cm |
| Operating Temperature [Max] | 165 °C | 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Impedance | 50 Ohms | 50 Ohms |
| Style | SMA to SMA | SMA to SMA |
FC50-01 Series
CBL ASSY SMA PLUG TO PLUG 12'
| Part | Style | Features | 2nd Connector | Overall Impedance | 1st Connector Mounting Type | 1st Contact Gender | Operating Temperature [Min] | Operating Temperature [Max] | 2nd Connector Mounting Type | Color | 2nd Contact Gender | 1st Connector | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cicoil FC50-01-CA012 | SMA to SMA | Shielded | SMA Plug | 50 Ohms | Free Hanging (In-Line) | Male | -65 ░C | 165 °C | Free Hanging (In-Line) | Clear | Male | SMA Plug | |||
Cicoil FC50-01-CA003 | SMA to SMA | Shielded | SMA Plug | 50 Ohms | Free Hanging (In-Line) | Male | -65 ░C | 165 °C | Free Hanging (In-Line) | Clear | Male | SMA Plug | 91.44 cm | 36 in | |
Cicoil FC50-01-CA006 | SMA to SMA | Shielded | SMA Plug | 50 Ohms | Free Hanging (In-Line) | Male | -65 ░C | 165 °C | Free Hanging (In-Line) | Clear | Male | SMA Plug | 1.8 m | 72 in | 6 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 166.10 | |
| 10 | $ 129.76 | |||
| 25 | $ 118.28 | |||
| 50 | $ 110.55 | |||
Description
General part information
FC50-01 Series
Cable Assembly Coaxial SMA to SMA 72.0" (1.8m) 6.0'
