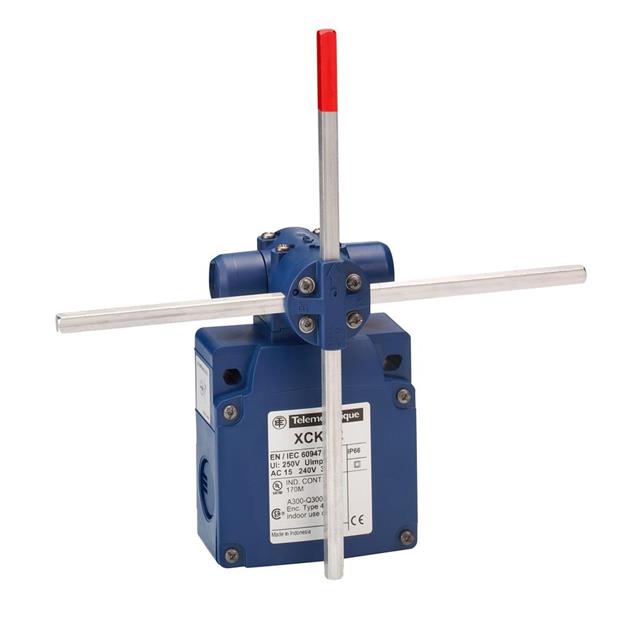

Specification	XCKVR24SR1H29

Actuator Type	Adjustable Rod, Side Rotary
Circuit	4PST-2NO/2NC
Current Rating	550 mA, 3 A
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Chassis Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Switch Function	On-Mom, Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	240 V
Voltage Rating - DC	125 V
