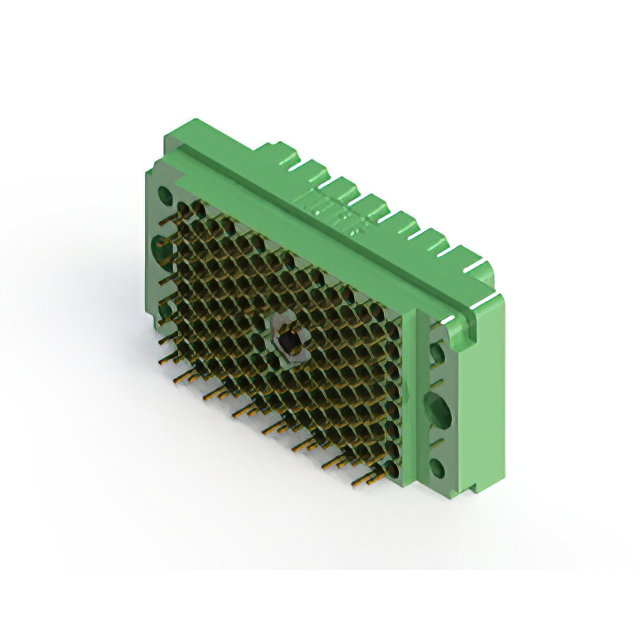

Specification	516-120-520-206

Color	Green
Connector Style	Rack and Panel
Connector Type	Housing for Non-Gendered Contacts
Connector Usage	Receptacle
Features	Jackscrew Socket
Note	Contacts Not Included
Number of Positions	120
Number of Rows	17
Pitch	0.15 in

516-120 Series

...

Part	Number of Rows	Connector Type	Features	Number of Positions	Connector Style	Connector Usage	Pitch	Color	Mounting Type
EDAC Inc. 516-090-500-506	13	Housing for Non-Gendered Contacts	Jackscrew Socket	90	Rack and Panel	Plug	0.15 in	Green
EDAC Inc. 516-056-520-166	9	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket	56	Rack and Panel	Plug	0.15 in	Green	Free Hanging (In-Line)
EDAC Inc. 516-120-541-356	17	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket	120	Rack and Panel	Plug	0.15 in	Gray	Free Hanging (In-Line)
EDAC Inc. 516-038-540-242	9	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket Mating Guide	38	Rack and Panel	Receptacle	0.15 in	Green	Free Hanging (In-Line)
EDAC Inc. 516-090-542-311	13	Housing for Non-Gendered Contacts	Backshell Guide Pin Jackscrew	90	Rack and Panel	Plug	0.15 in	Gray	Free Hanging (In-Line)
EDAC Inc. 516-038-000-232	9	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket Mating Guide	38	Rack and Panel	Receptacle	0.15 in	Green	Free Hanging (In-Line)
EDAC Inc. 516-038-542-236	9	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket	38	Rack and Panel	Receptacle	0.15 in	Green	Free Hanging (In-Line)
EDAC Inc. 516-038-541-606	9	Housing for Non-Gendered Contacts	Jackscrew Socket	38	Rack and Panel	Receptacle	0.15 in	Green
EDAC Inc. 516-090-500-516	13	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket	90	Rack and Panel	Plug	0.15 in	Green	Free Hanging (In-Line)
EDAC Inc. 516-020-520-655	4	Housing for Non-Gendered Contacts	Backshell Jackscrew	20	Rack and Panel	Receptacle	0.15 in	Green	Free Hanging (In-Line)
