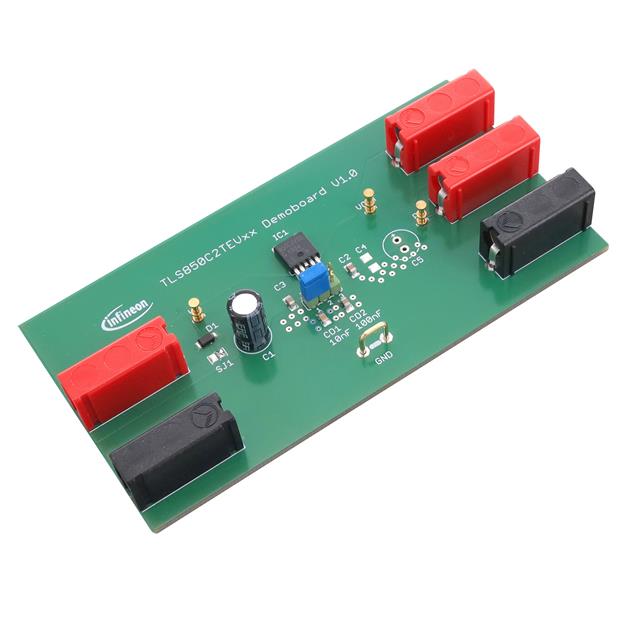

TheTLS850C2TE V50demoboard enables the evaluation of Infineon’s latest high performance automotive LDO of the OPTIREG™ family. With an input voltage range of 3 V to 40 V, this regulator is perfectly suitable for automotive or other supply systems permanently connected to battery. The very low quiescent current of only 20 µA makes the TLS850C2TE particularly suitable for always-on applications. The reset feature supervises the output voltage, including under-voltage reset and delayed reset at power-on. The demoboard allows for an easy plug and play solution to evaluate the TLS850C2TE V50 with all necessary external components already mounted on the board. The delay timing of the Reset functionality is selectable between 2 values by using the delay capacitance jumper. For additional design verification, placeholder Sockets for additional output capacitance is available. Dedicated test points allow advanced verification on the Input, Output and Reset Output.
Technical Specifications
Parameters and characteristics for this part
| Specification | TLS850C2TEV50BOARDTOBO1 |
|---|---|
| Board Type | Fully Populated |
| Channels per IC (Count) | 1 |
| Channels per IC (Single) | 1 |
| Channels per IC (Type) | Single |
| Contents | Board |
| Current - Output | 500 mA |
| Regulator Type | Positive Fixed |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TLS850C2TEV50 |
| Voltage - Input (Maximum) | 40 V |
| Voltage - Input (Minimum) | 3 V |
| Voltage - Output | 5 VDC |
