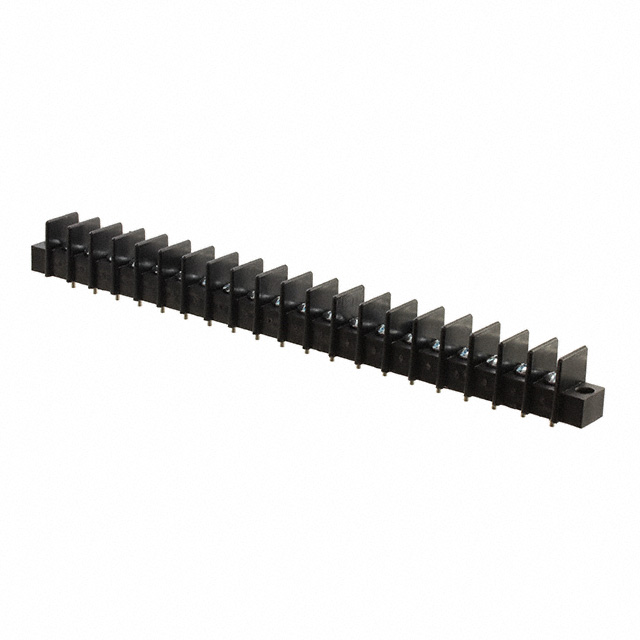

CBP-20

Active

Curtis Industries

CONN BARRIER STRP 20CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBP-20

Active

Curtis Industries

CONN BARRIER STRP 20CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.76
		10	$ 18.96
		25	$ 18.31
		50	$ 17.65
		100	$ 17.12
		250	$ 16.79
		500	$ 16.46

Description

General part information

CBP Series

20 Circuit 0.375" (9.53mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Specification	CBP-20	CBP Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyester Thermoplastic	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	20	4 - 26
Number of Rows	1	1
Number of Wire Entries	20	4 - 26
Operating Temperature	140 °C	140 °C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Part

Pitch [x]

Top Termination

Number of Circuits

Terminal Block Type

Mounting Type

Wire Gauge [Min]

Wire Gauge [Max]

Number of Wire Entries

Operating Temperature

Color

Voltage Rating

Material Flammability Rating

Number of Rows

Bottom Termination

Features

Current Rating (Amps)

Material - Insulation

Barrier Type

Terminal Screw Material

Curtis Industries
