1801178-1
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS 3W RECEPTACLE HP CONNECTOR BLACK
1801178-1
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS 3W RECEPTACLE HP CONNECTOR BLACK
Description
General part information
1801178-1

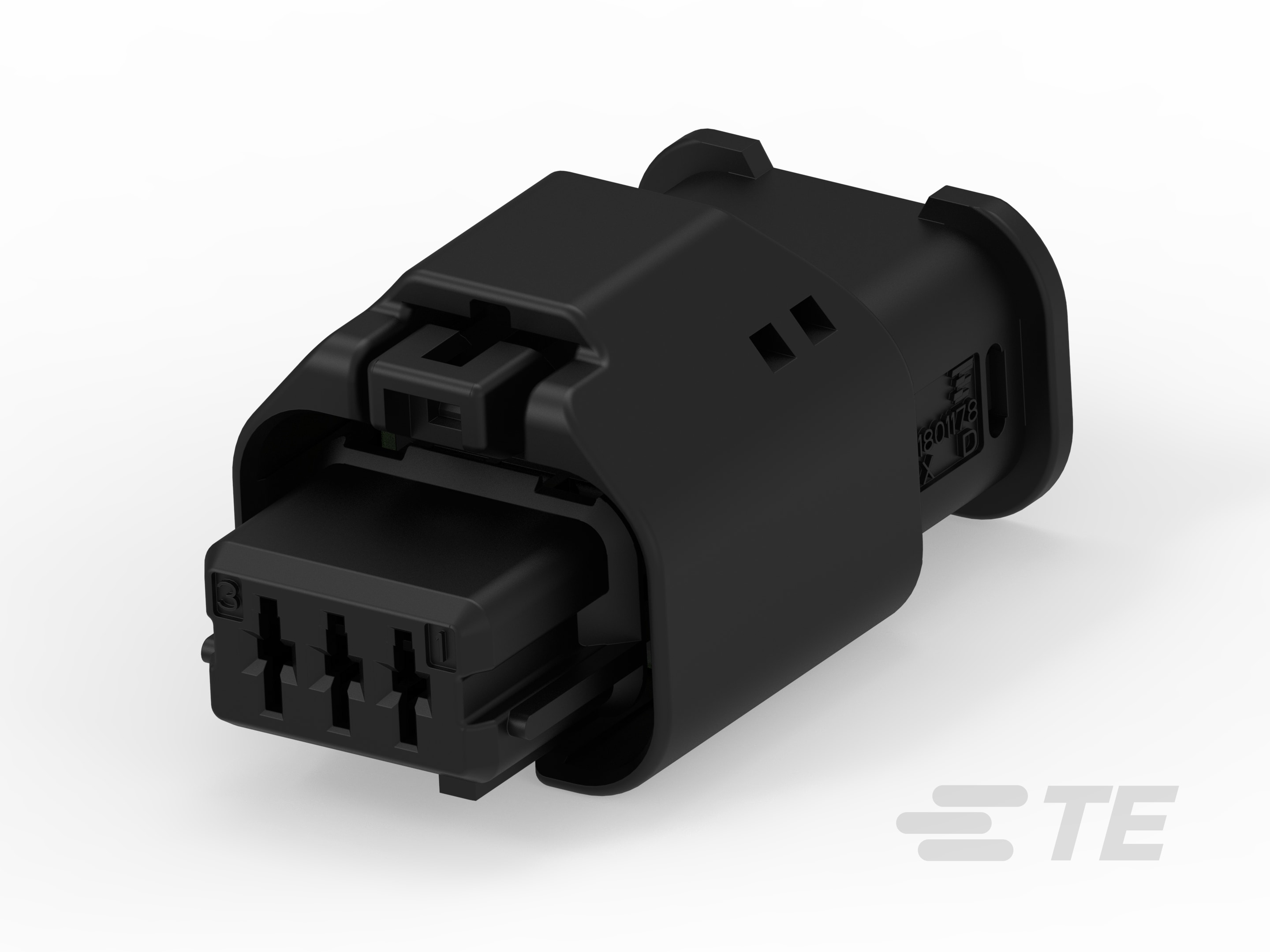

3 Position Housing, Housing for Female Terminals, Wire-to-Wire, 3.33 mm [.13 in] Centerline, Sealable, Black, Wire & Cable, Sensor Flat Contact System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1801178-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Blade Socket |
| Fastening Type | Latch Holder |
| Features | Sealed, IP6K9K |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.131 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
