C22G50
ObsoleteEaton - Electronics Division

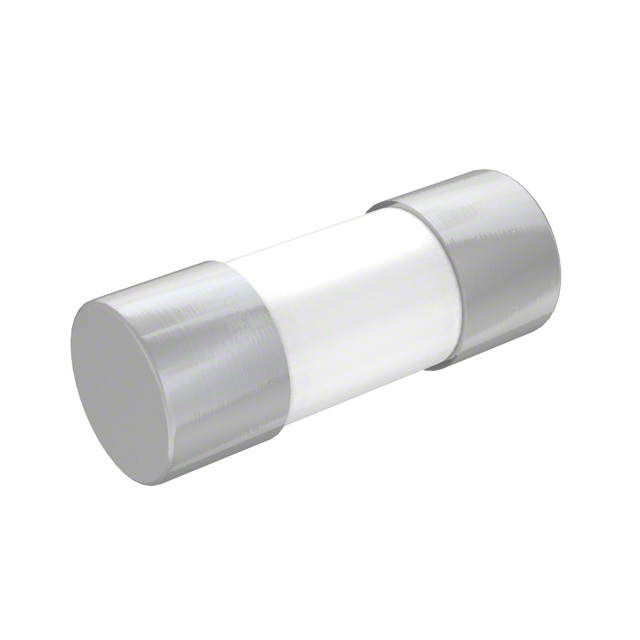

CYLINDRICAL FUSE 22 X 58 50A GG 690V AC
C22G50
ObsoleteEaton - Electronics Division
CYLINDRICAL FUSE 22 X 58 50A GG 690V AC
Description
General part information
C22G50
50A 690 VAC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | C22G50 |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 80 kA |
| Current Rating | 50 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension Diameter | 0.874 in |
| Size / Dimension Length | 2.283 in |
| Voltage Rating - AC | 690 V |
