1785/36
Active3M Electronic Specialty

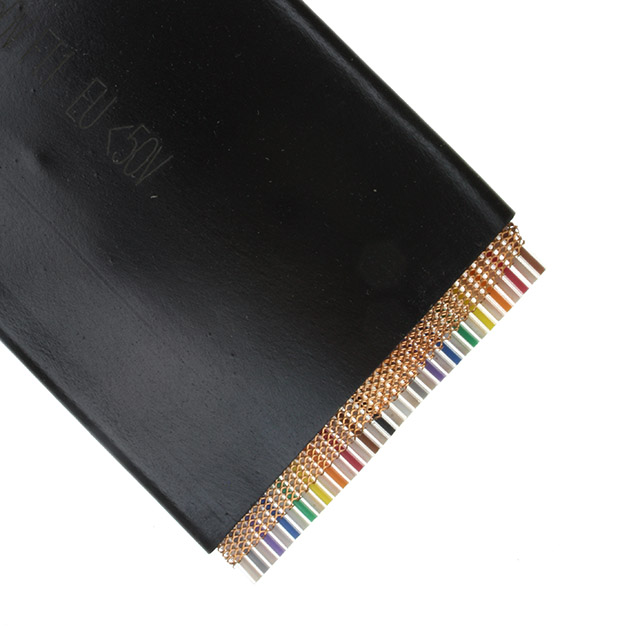

CBL RIBN 36COND TWIST PAIR 200'
1785/36
Active3M Electronic Specialty
CBL RIBN 36COND TWIST PAIR 200'
Description
General part information
1785/36
CBL RIBN 36COND TWIST PAIR 200'
Technical Specifications
Parameters and characteristics for this part
| Specification | 1785/36 |
|---|---|
| Cable Type | Flat Twisted Pair, Flat Jacket |
| Conductor Arrangement | Twisted |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 36 AWG |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 200 ft |
| Number of Conductors | 36 |
| Number of Conductors - Pair | 18 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Pitch | 0.05 in |
| Ratings | Style, 2912, UL |
| Ribbon Thickness | 0.12 in |
| Ribbon Width | 1.93 in |
| Shielding | Shielded |
| Voltage | 150 V |
| Wire Gauge | 28 AWG |
