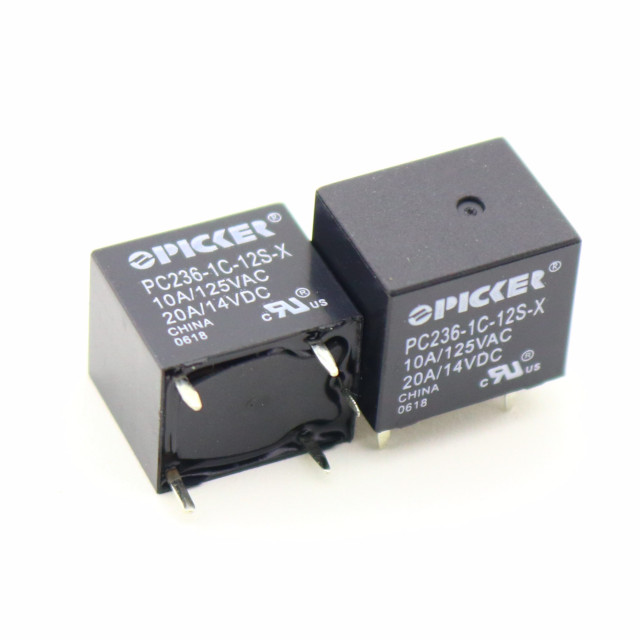

PC236-1C-12S-X

Active

Picker Components

RELAY GEN PURPOSE SPDT 20A 12V

Search across all available documentation for this part.

Active

Picker Components

RELAY GEN PURPOSE SPDT 20A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 20A 12V

Part	Seal Rating	Switching Voltage [Max]	Coil Insulation	Coil Voltage	Contact Form	Contact Rating (Current)	Coil Current	Load - Max Switching	Operate Time	Mounting Type	Termination Style	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Type	Coil Resistance	Release Time	Relay Type	Contact Material
Picker Components PC236-1C-12S-X	Sealed - Fully	48 VDC, 277 VAC	Class B	12 VDC	SPDT (1 Form C)	20 A	50 mA	960 W, 5540 VA	10 ms	Through Hole	PC Pin	9.6 VDC	85 °C	-40 °C	0.6 VDC	Non Latching	240 Ohms	5 ms	General Purpose	Silver Tin Oxide (AgSnO)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
