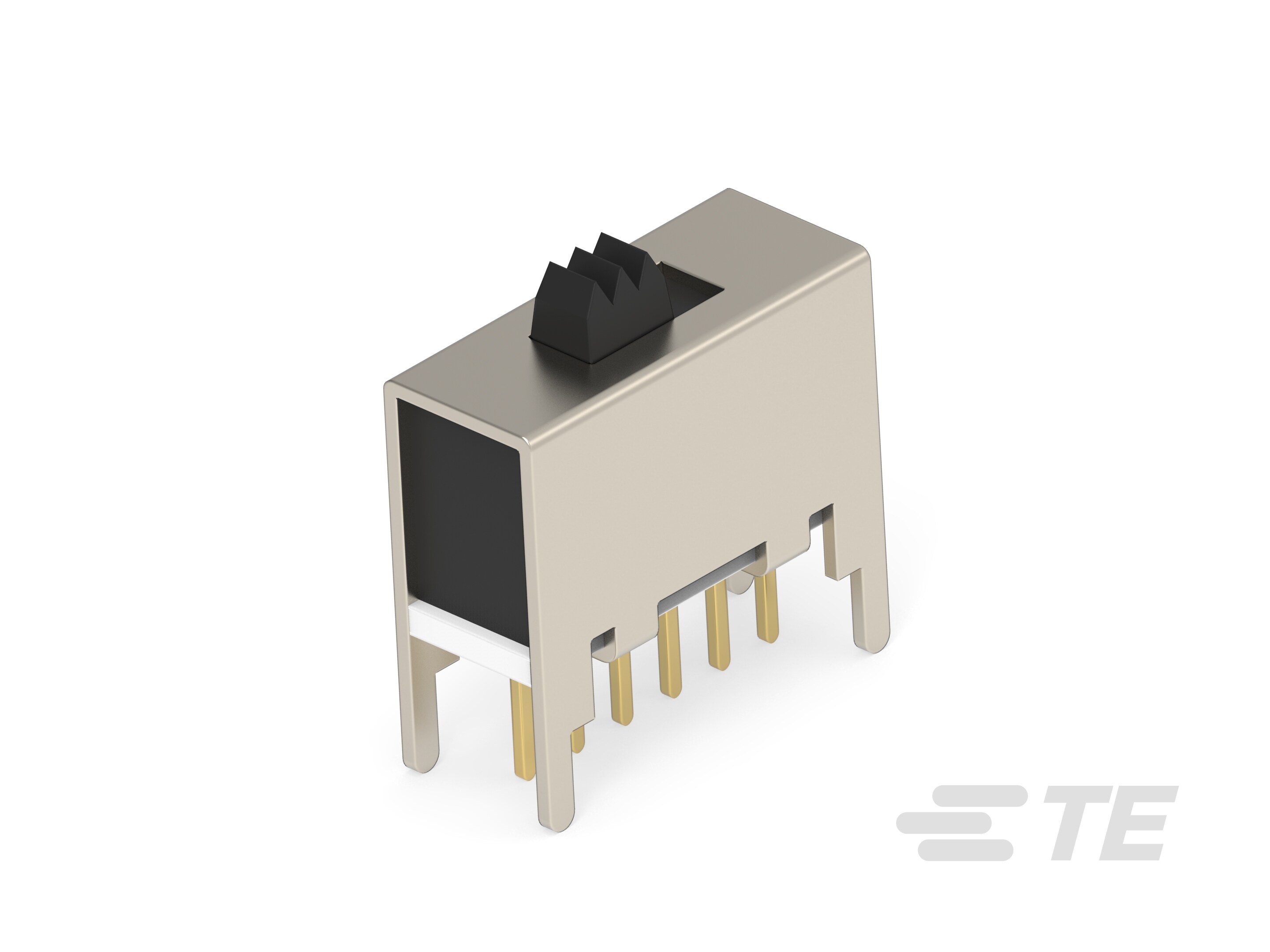

Specification	1825261-2

Actuator Length	2.3 mm
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Shorting (MBB)
Current Rating	0.4 VA
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-20 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

ALCOSWITCH MSS Series

Part	Voltage Rating - DC	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish	Termination Style	Switch Function	Features	Contact Material	Current Rating	Mounting Type	Circuit	Voltage Rating - AC	Contact Timing	Actuator Type	Actuator Length	Switch Travel	Electrical Life (Cycles)	Mechanical Life (Cycles)	Actuator Material	Operating Force
TE Connectivity AMP Connectors 1825262-2	20 V	85 °C	-20 °C	Gold	PC Pin	On-On	Epoxy Sealed Terminals	Copper Alloy	0.4 VA	Through Hole	DPDT	20 V	Shorting (MBB)	Standard	6.2 mm	2 mm	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf
TE Connectivity AMP Connectors 1825263-1		85 °C	-20 °C	Silver	PC Pin	On-On	Epoxy Sealed Terminals	Copper Alloy	300 mA	Through Hole	DPDT	125 V	Shorting (MBB)	Standard	11 mm
TE Connectivity AMP Connectors 1825257-2	20 V	85 °C	-20 °C	Gold	PC Pin	On-On	Epoxy Sealed Terminals	Copper Alloy	0.4 VA	Through Hole	SPDT	20 V	Shorting (MBB)	Standard	5 mm	2 mm	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf
TE Connectivity AMP Connectors 1825264-2	20 V	85 °C	-20 °C	Gold	PC Pin	On-On	Epoxy Sealed Terminals	Copper Alloy	0.4 VA	Through Hole	4PDT	20 V	Shorting (MBB)	Standard	8 mm	2 mm	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf
TE Connectivity AMP Connectors 1825258-2	20 V	85 °C	-20 °C	Gold	PC Pin	On-On	Epoxy Sealed Terminals	Copper Alloy	0.4 VA	Right Angle Through Hole	SPDT	20 V	Shorting (MBB)	Standard	4 mm	2 mm	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf
TE Connectivity AMP Connectors 1825266-1		85 °C	-20 °C	Silver	PC Pin	On-On	Epoxy Sealed Terminals	Copper Alloy	300 mA	Through Hole	4PDT	125 V	Shorting (MBB)	Standard	12 mm	2 mm	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf
TE Connectivity AMP Connectors 1825265-1		85 °C	-20 °C	Silver	PC Pin	On-On	Epoxy Sealed Terminals	Copper Alloy	300 mA	Right Angle Through Hole	4PDT	125 V	Shorting (MBB)	Standard	7 mm
TE Connectivity AMP Connectors 1825267-1		85 °C	-20 °C	Silver	PC Pin	On-On-On	Epoxy Sealed Terminals	Copper Alloy	300 mA	Through Hole	4P3T	125 V	Shorting (MBB)	Standard	5.5 mm
TE Connectivity AMP Connectors 1825261-1		85 °C	-20 °C	Silver	PC Pin	On-On	Epoxy Sealed Terminals	Copper Alloy	300 mA	Through Hole	DPDT	125 V	Shorting (MBB)	Standard	2.3 mm	2 mm	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf
TE Connectivity AMP Connectors 1825268-2	20 V	85 °C	-20 °C	Gold	PC Pin	On-On-On	Epoxy Sealed Terminals	Copper Alloy	0.4 VA	Right Angle Through Hole	4P3T	20 V	Shorting (MBB)	Standard	4.2 mm
