881018-2
ActiveTE Connectivity AMP Connectors
RING TONGUE 2.5-4.0 MM2 TPBR
881018-2
ActiveTE Connectivity AMP Connectors
RING TONGUE 2.5-4.0 MM2 TPBR
Description
General part information
881018-2

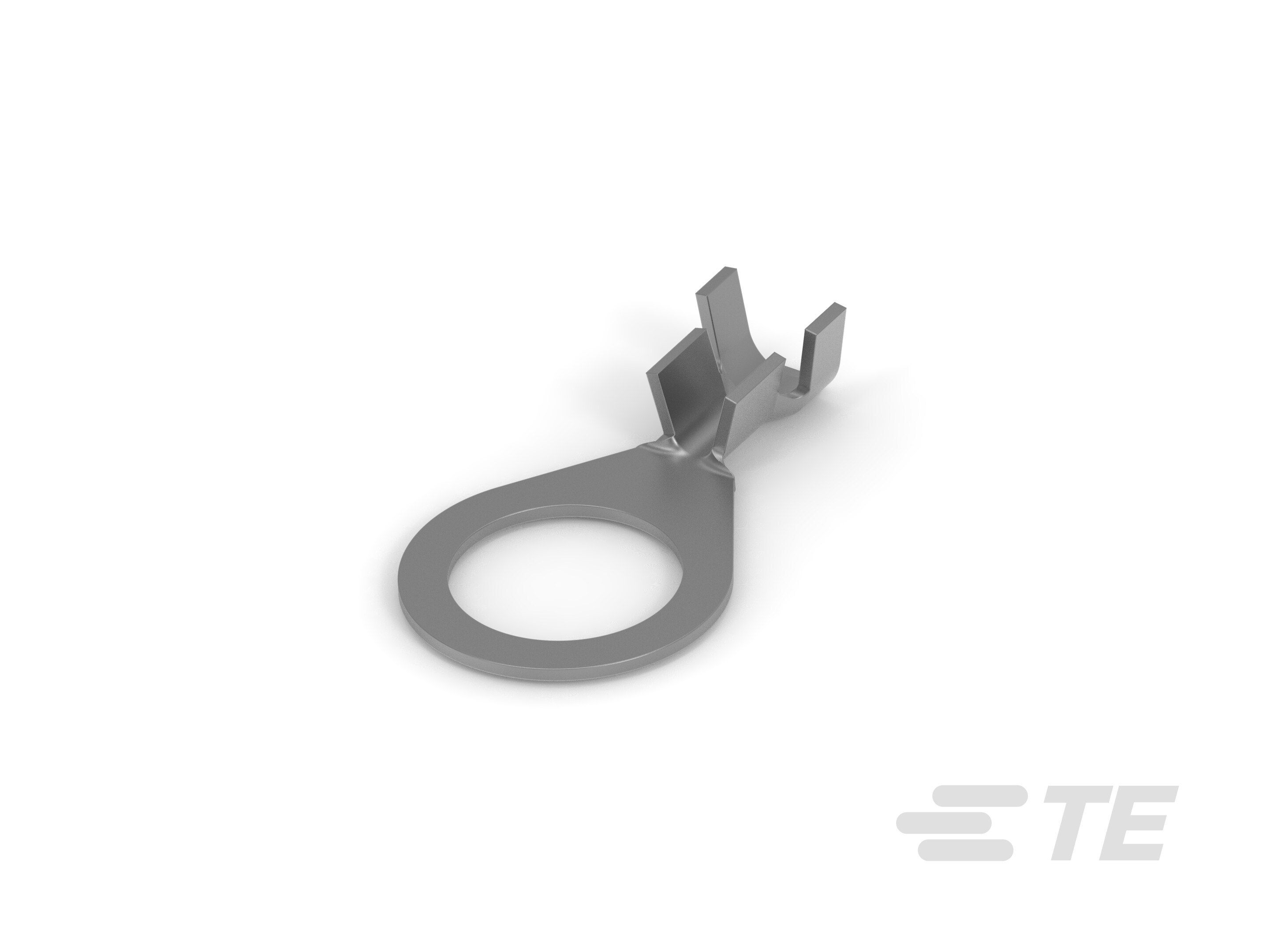

Closed Ring Tongue Terminal, 13 – 11 AWG, 3/8 Stud, 13 mm [.512 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 881018-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 1.256 in |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.728 in |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
