Description

General part information

PX0410 Series

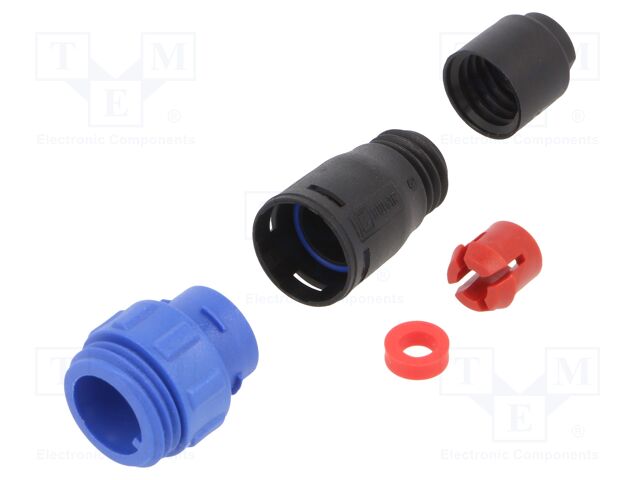

The PX0410/06S/4550 is a 6-pole Circular Connector with 2.5mm contact engagement for electrical integrity, socket contacts, UL94V-0 flame-retardant polyamide moulding material and contact inserts are part of body moulding. A full range of environmentally sealed circular connectors designed to provide secure and safe connections in harsh or hostile conditions.

Technical Specifications

Parameters and characteristics for this part

Specification	PX0410/06S/4550

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Solder Cup, Crimp
Fastening Type	Threaded
Features	Backshell, Coupling Nut, UV Resistant
Housing Color	Blue, Black
Includes	Connector, Cage Clamp, Gland, Clamp Nut, Backshell, O-Ring
Includes Total Count	6 pcs
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Position Types	Power
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shielding	Unshielded
Type	For Female Sockets

PX0410 Series

Part	Housing Color	Primary Material	Mounting Type	Material Flammability Rating	Type	Number of Positions	Position Types	Orientation	Features	Connector Type	Fastening Type	Shielding	Contact Type	Shell Material	Ingress Protection IP Rating	Ingress Protection Description	Mounting Feature
BULGIN LIMITED PX0410/03P/6065	Black Blue	Plastic	Free Hanging (In-Line)	UL94 V-0	For Male Pins	3	Power	Keyed	Backshell Coupling Nut UV Resistant	Plug Housing	Threaded	Unshielded	Crimp Solder Cup	Nylon Polyamide (PA)	IP68	Dust Tight Waterproof
BULGIN LIMITED PX0410/02P/3035	Black Blue	Plastic	Free Hanging (In-Line)	UL94 V-0	For Male Pins	2	Power	Keyed	Backshell Coupling Nut UV Resistant	Plug Housing	Threaded	Unshielded	Crimp Solder Cup	Nylon Polyamide (PA)	IP68	Dust Tight Waterproof

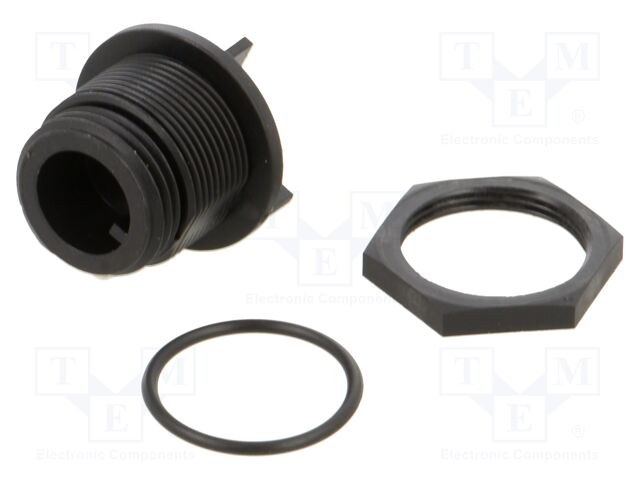

BULGIN LIMITED PX0413/08P	Black	Plastic	Panel Mount	UL94 V-0	For Male Pins	8	Power	Keyed	UV Resistant	Receptacle Housing	Threaded	Unshielded	Crimp Solder Cup	Nylon Polyamide (PA)	IP68	Dust Tight Waterproof	Bulkhead Front Side Nut
BULGIN LIMITED PX0411/06P/4550	Black Blue	Plastic	Free Hanging (In-Line)	UL94 V-0	For Male Pins	6	Power	Keyed	Backshell UV Resistant	Receptacle Housing	Threaded	Unshielded	Crimp Solder Cup	Nylon Polyamide (PA)	IP68	Dust Tight Waterproof
BULGIN LIMITED PX0413/03P	Black	Plastic	Panel Mount	UL94 V-0	For Male Pins	3	Power	Keyed	UV Resistant	Receptacle Housing	Threaded	Unshielded	Crimp Solder Cup	Nylon Polyamide (PA)	IP68	Dust Tight Waterproof	Bulkhead Front Side Nut
