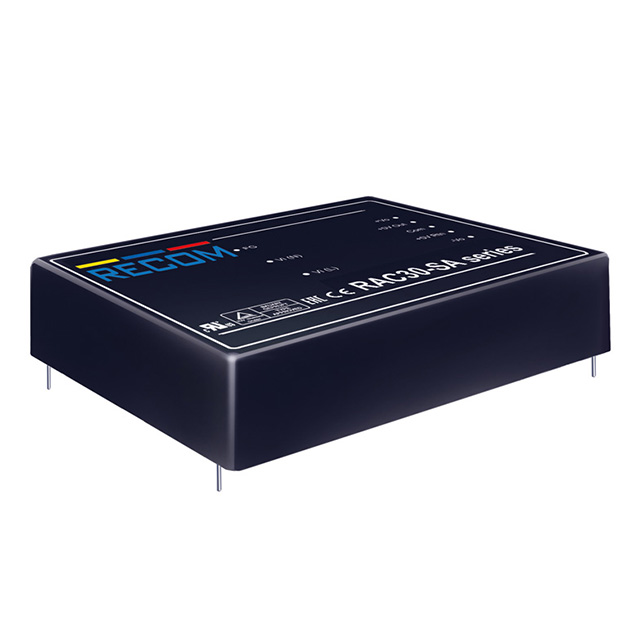

RAC30-05DA-E
ObsoleteRecom Power
AC/DC CONVERTER +/-5V 30W
RAC30-05DA-E
ObsoleteRecom Power
AC/DC CONVERTER +/-5V 30W
Description
General part information
RAC30-05DA-E
Enclosed AC DC Converters 2 Output 5V 3A, 3A 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RAC30-05DA-E |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output (Max) | 3 A |
| Efficiency | 79 % |
| Features | SCP |
| Line Regulation | 1 % |
| Load Regulation (Percent) | 3 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Leads |
| Package Name | 7-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension Height | 1 in |
| Size / Dimension Length | 3.5 in |
| Size / Dimension Width | 2.5 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 5 V |
| Weight | 0.467 lb |
