Specification	G7L-1A-P-80-CB DC12

Approval Agency	UR, TUV, CSA
Coil Current	158 mA
Coil Insulation	Class B
Coil Resistance	75 Ohms
Coil Type	Non Latching
Coil Voltage	12 VAC
Contact Form	SPST-NO
Contact Material	Silver Alloy
Contact Rating (Current)	20 A
Form A Count	1
Load - Max Switching (Apparent Power)	5000 VA
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.8 VAC
Operate Time	30 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Relay Type	General Purpose
Release Time	30 ms
Switching Voltage AC (Max)	250 VAC
Termination Style	PC Pin

G7L-1A Series

Part	Operate Time	Must Operate Voltage	Load - Max Switching (Apparent Power)	Release Time	Relay Type	Coil Type	Contact Rating (Current)	Contact Material	Approval Agency	Coil Voltage	Must Release Voltage	Switching Voltage AC (Max)	Mounting Type	Form A Count	Contact Form	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Coil Current	Coil Resistance	Coil Insulation	Quick Connect Size (0.250")	Features
Omron Electronics Inc-EMC Div G7L-1A-BUB DC48	30 ms	36 VDC	7500 VA	30 ms	General Purpose	Non Latching	30 A	Silver Alloy	CSA TUV UR	48 V	7.2 VAC	250 VAC	Chassis Mount	1	SPST-NO	-25 °C	60 °C	Screw Terminal	40 mA	1.22 kOhms
Omron Electronics Inc-EMC Div G7L-1A-T-80-CB AC100/120	30 ms	75 VDC	7500 VA	30 ms	General Purpose	Non Latching	30 A	Silver Alloy	CSA TUV UR	120 V	18 VDC	250 VAC	Chassis Mount	1	SPST-NO	-25 °C	60 °C	Quick Connect	20.4 mA	5.26 kOhms	Class B	0.25 in
Omron Electronics Inc-EMC Div G7L-1A-T-J-CB-AC100/120	30 ms	75 VDC	7500 VA	30 ms	General Purpose	Non Latching	30 A	Silver Alloy	CSA TUV UR	120 V	18 VDC	250 VAC	Chassis Mount	1	SPST-NO	-25 °C	60 °C	Quick Connect	20.4 mA	5.26 kOhms	Class B	0.25 in	Test Button
Omron Electronics Inc-EMC Div G7L-1A-P-CB-DC24	30 ms	18 VDC	5000 VA	30 ms	General Purpose	Non Latching	20 A	Silver Alloy	CSA TUV UR	24 VDC	3.6 VAC	250 VAC	Through Hole	1	SPST-NO	-25 °C	60 °C	PC Pin	79 mA	303 Ohms	Class B
Omron Electronics Inc-EMC Div G7L-1A-T-CB DC48	30 ms	36 VDC	7500 VA	30 ms	General Purpose	Non Latching	30 A	Silver Alloy	CSA TUV UR	48 V	7.2 VAC	250 VAC	Chassis Mount	1	SPST-NO	-25 °C	60 °C	Quick Connect	40 mA	1.22 kOhms	Class B	0.25 in

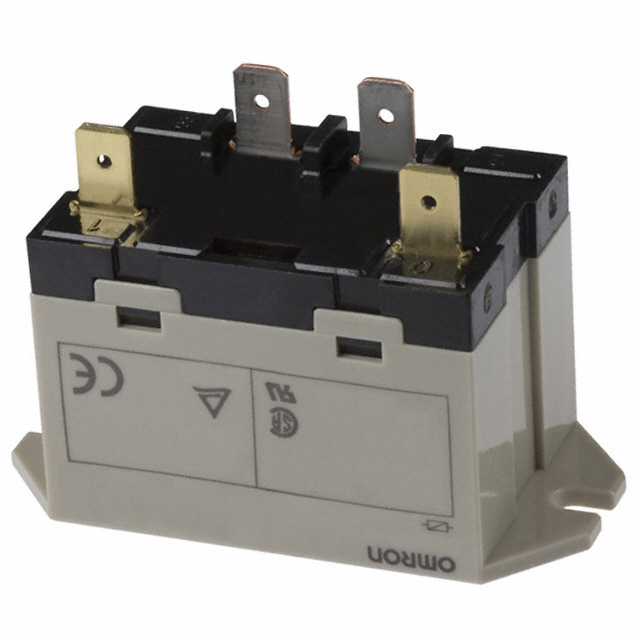

Omron Electronics Inc-EMC Div G7L-1A-TUB-J-CB-DC100	30 ms	75 VDC	7500 VA	30 ms	General Purpose	Non Latching	30 A	Silver Alloy	CSA TUV UR	100 VDC	15 VDC	250 VAC	Chassis Mount	1	SPST-NO	-25 °C	60 °C	Quick Connect	19 mA	5.26 kOhms	Class B	0.25 in	Test Button
Omron Electronics Inc-EMC Div G7L-1A-P-CB AC24	30 ms	18 VDC	5000 VA	30 ms	General Purpose	Non Latching	20 A	Silver Alloy	CSA TUV UR	24 VDC	3.6 VAC	250 VAC	Through Hole	1	SPST-NO	-25 °C	60 °C	PC Pin	71 mA	303 Ohms	Class B
Omron Electronics Inc-EMC Div G7L-1A-T-J-CB DC24	30 ms	18 VDC	7500 VA	30 ms	General Purpose	Non Latching	30 A	Silver Alloy	CSA TUV UR	24 VDC	3.6 VAC	250 VAC	Chassis Mount	1	SPST-NO	-25 °C	60 °C	Quick Connect	79 mA	303 Ohms	Class B	0.25 in	Test Button
Omron Electronics Inc-EMC Div G7L-1A-T-CB AC100/120	30 ms	75 VDC	7500 VA	30 ms	General Purpose	Non Latching	30 A	Silver Alloy	CSA TUV UR	120 V	18 VDC	250 VAC	Chassis Mount	1	SPST-NO	-25 °C	60 °C	Quick Connect	20.4 mA	5.26 kOhms	Class B	0.25 in
Omron Electronics Inc-EMC Div G7L-1A-B-CB DC24	30 ms	18 VDC	7500 VA	30 ms	General Purpose	Non Latching	30 A	Silver Alloy	CSA TUV UR	24 VDC	3.6 VAC	250 VAC	Chassis Mount	1	SPST-NO	-25 °C	60 °C	Screw Terminal	79 mA	303 Ohms	Class B
