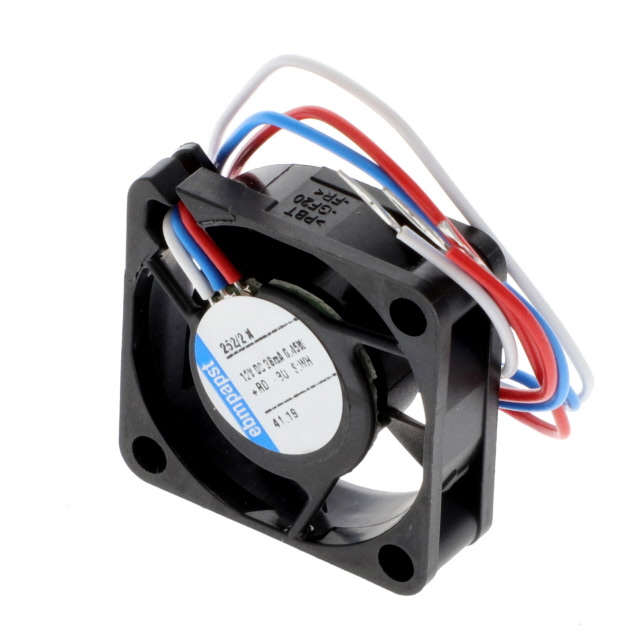

252/2N
Activeebm-papst Inc.
FAN AXIAL 25X8MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
252/2N
Activeebm-papst Inc.
FAN AXIAL 25X8MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 252/2N |
|---|---|
| Air Flow | 0.053 mł/min |
| Air Flow | 1.9 CFM |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 0.5 W |
| RPM | 9000 RPM |
| Size / Dimension [x] | 25 mm |
| Size / Dimension [z] | 25 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 14 V |
| Voltage Range [Min] | 10 VDC |
| Width [y] | 8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.37 | |
| 10 | $ 30.48 | |||
| 25 | $ 29.32 | |||
| 50 | $ 27.39 | |||
| 100 | $ 25.27 | |||
| 250 | $ 24.89 | |||
Description
General part information
252/2N
Fan Tubeaxial 12VDC Square - 25mm L x 25mm H Sintec 1.9 CFM (0.053m³/min) 3 Wire Leads
