NTCASCWE3222J
ActiveVishay Dale
NTC ASSEMBLIES SCREW 2K2 5% E3
NTCASCWE3222J
ActiveVishay Dale
NTC ASSEMBLIES SCREW 2K2 5% E3
Description
General part information
NTCASCWE3222J

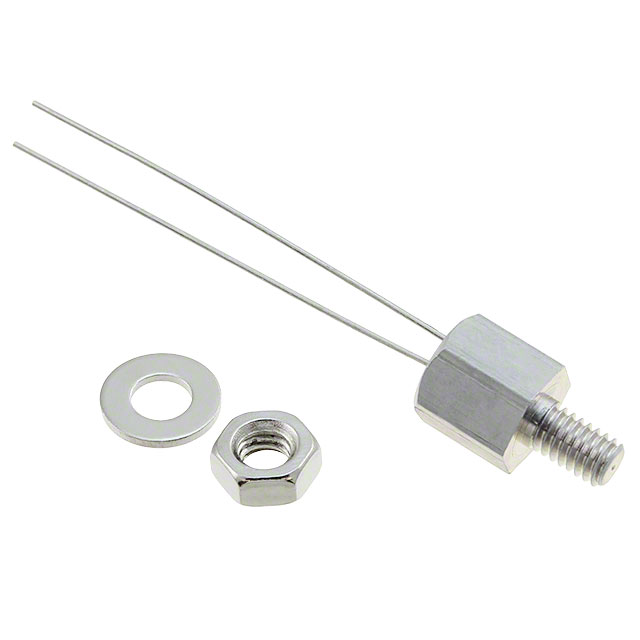

NTC Thermistor 2.2k Cylindrical Probe Assembly
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCASCWE3222J |
|---|---|
| B Value (25/85) | 3977 K |
| B Value Tolerance | 0.75 % |
| Length - Lead Wire | 1.46 in |
| Mounting Type | Threaded |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Cylindrical Probe Assembly |
| Power - Max | 0.5 W |
| Resistance (Ohms) | 2.2 kOhm |
| Resistance Tolerance (%) | 5 % |
