TXR40AC90-0804AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSH ADPT SZ9 A SIL M12

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TXR40AC90-0804AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSH ADPT SZ9 A SIL M12

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TXR40AC90-0804AI	TXR40AC90 Series

Cable Exit	90 °	90 °
Color	Silver	Silver
Diameter - Outside	-	29 mm
Diameter - Outside [diameter]	18 mm	1.142 - 40 in
Diameter - Outside [diameter]	0.709 in	0.709 - 1.575 in
Features	Tinel Lock	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs	1 pcs
Includes	-	1 O-Ring, 2 Braids, 1 Backshell, 1 Tinel Ring, 1 Braid, 2 O-Rings, 2 pc Backshell
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy
Plating	Electroless Nickel	Electroless Nickel
Shell Size - Insert	-	13 - 23
Shell Size - Insert	-	D, H, G, F, C, 17, E
Shell Size - Insert [custom]	9	9
Shell Size - Insert [custom]	A	A
Shielding	Shielded	Shielded
Thread Size	M12x1	M34x1, M31x1, M28x1, M12x1, M18x1, M25x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

TXR40AC90 Series

CONN BACKSHELL ADPT SZ15 D SILV

Part	Shell Size - Insert	Shell Size - Insert	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shielding	Color	Type	Cable Exit	For Use With/Related Products	Includes	Material	Plating	Ingress Protection	Diameter - Outside [diameter]	Thread Size	Includes	Shell Size - Insert [custom]	Shell Size - Insert [custom]
TE Connectivity Aerospace, Defense and Marine TXR40AC90-1408AI	15	D	Tinel Lock	1.142 in	29 mm	Shielded	Silver	Backshell, Heat Shrink Adapter	90 °	MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	Aluminum Alloy	Electroless Nickel	Environment Resistant
TE Connectivity Aerospace, Defense and Marine TXR40AC90-2212AI	23	H	Tinel Lock	40 mm		Shielded	Silver	Backshell, Heat Shrink Adapter	90 °	MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	Aluminum Alloy	Electroless Nickel	Environment Resistant	1.575 in	M34x1
TE Connectivity Aerospace, Defense and Marine TXR40AC90-2016AI	21	G	Tinel Lock	37 mm		Shielded	Silver	Backshell, Heat Shrink Adapter	90 °	MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	Aluminum Alloy	Electroless Nickel	Environment Resistant	1.457 "	M31x1
TE Connectivity Aerospace, Defense and Marine TXR40AC90-1814BI	19	F	Tinel Lock	35.5 mm		Shielded	Silver	Backshell, Heat Shrink Adapter	90 °	MIL-DTL-38999 Series III, IV		Aluminum Alloy	Electroless Nickel	Environment Resistant	1.398 in	M28x1	1 Backshell, 1 O-Ring, 1 Tinel Ring, 2 Braids
TE Connectivity Aerospace, Defense and Marine TXR40AC90-0805AI			Tinel Lock	18 mm		Shielded	Silver	Backshell, Heat Shrink Adapter	90 °	MIL-DTL-38999 Series III, IV		Aluminum Alloy	Electroless Nickel	Environment Resistant	0.709 in	M12x1	1 Braid, 1 Tinel Ring, 2 O-Rings, 2 pc Backshell	9	A
TE Connectivity Aerospace, Defense and Marine TXR40AC90-1210AI	13	C	Tinel Lock	24.5 mm		Shielded	Silver	Backshell, Heat Shrink Adapter	90 °	MIL-DTL-38999 Series III, IV		Aluminum Alloy	Electroless Nickel	Environment Resistant	0.965 in	M18x1	1 Braid, 1 Tinel Ring, 2 O-Rings, 2 pc Backshell
TE Connectivity Aerospace, Defense and Marine TXR40AC90-1808BI	19	F	Tinel Lock	35.5 mm		Shielded	Silver	Backshell, Heat Shrink Adapter	90 °	MIL-DTL-38999 Series III, IV		Aluminum Alloy	Electroless Nickel	Environment Resistant	1.398 in	M28x1	1 Backshell, 1 O-Ring, 1 Tinel Ring, 2 Braids
TE Connectivity Aerospace, Defense and Marine TXR40AC90-2014BI	21	G	Tinel Lock	37 mm		Shielded	Silver	Backshell, Heat Shrink Adapter	90 °	MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	Aluminum Alloy	Electroless Nickel	Environment Resistant	1.457 "	M31x1
TE Connectivity Aerospace, Defense and Marine TXR40AC90-1807AI	19	F	Tinel Lock	35.5 mm		Shielded	Silver	Backshell, Heat Shrink Adapter	90 °	MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	Aluminum Alloy	Electroless Nickel	Environment Resistant	1.398 in	M28x1
TE Connectivity Aerospace, Defense and Marine TXR40AC90-1614AI		17, E	Tinel Lock	32.49 mm		Shielded	Silver	Backshell, Heat Shrink Adapter	90 °	MIL-DTL-38999 Series III, IV		Aluminum Alloy	Electroless Nickel	Environment Resistant	1.279 in	M25x1	1 Braid, 1 Tinel Ring, 2 O-Rings, 2 pc Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 201.19

Description

General part information

TXR40AC90 Series

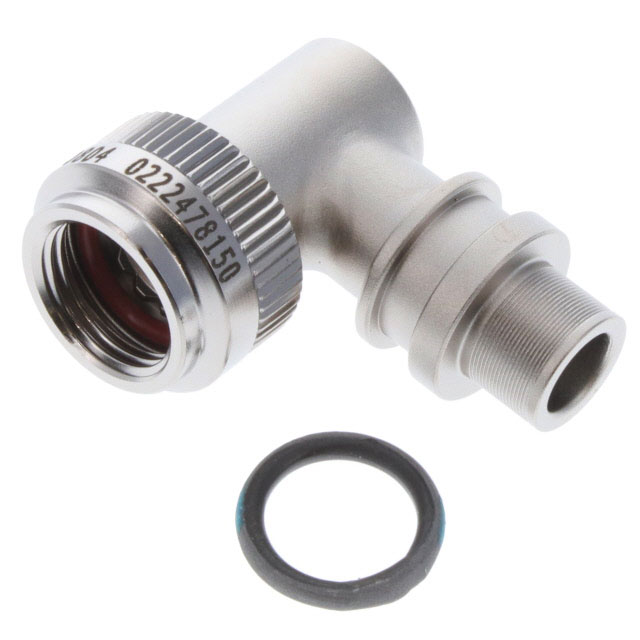

Silver Connector Backshell, Heat Shrink Adapter M12x1 9, A
