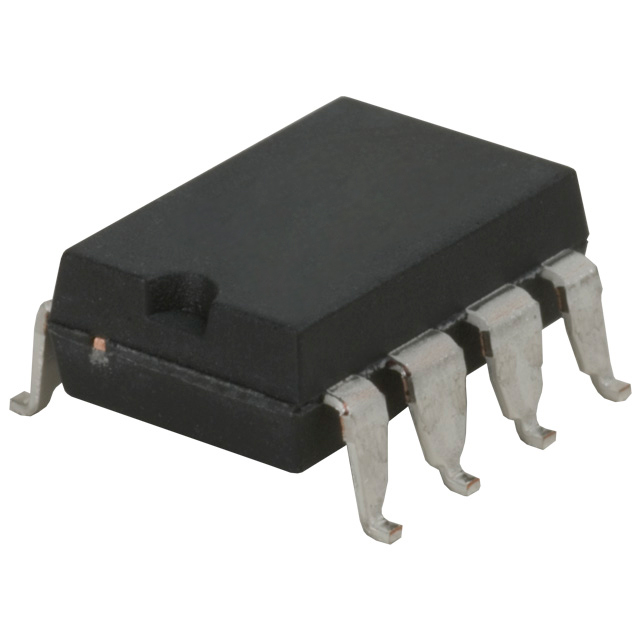

XBA170P
ActiveIXYS Integrated Circuits Division
RELAY SPST-NO/NC 100MA 0-350V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XBA170P
ActiveIXYS Integrated Circuits Division
RELAY SPST-NO/NC 100MA 0-350V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XBA170P | XBA170 Series |
|---|---|---|
| Approval Agency | CSA, EN, UL | CSA, EN, UL |
| Circuit | SPST-NO, SPST-NC | SPST-NO, SPST-NC |
| Load Current | 100 mA | 100 mA |
| Mounting Type | Surface Mount | Surface Mount |
| On-State Resistance (Max) [Max] | 50 Ohm | 50 Ohm |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | DC, AC | DC, AC |
| Package / Case | 7.62 mm | 7.62 mm |
| Package / Case | 0.3 in | 0.3 in |
| Package / Case | 8-SMD | 8-SMD |
| Supplier Device Package | 8-FlatPack | 8-SMD, 8-FlatPack |
| Termination Style | Gull Wing | Gull Wing |
| Voltage - Input | 1.2 VDC | 1.2 VDC |
| Voltage - Load [Max] | 350 V | 350 V |
| Voltage - Load [Min] | 0 V | 0 V |
XBA170 Series
RELAY SPST-NO/NC 100MA 0-350V
| Part | Supplier Device Package | On-State Resistance (Max) [Max] | Load Current | Mounting Type | Output Type | Circuit | Package / Case | Package / Case | Package / Case | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input | Termination Style | Voltage - Load [Max] | Voltage - Load [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IXYS Integrated Circuits Division XBA170STR | 8-SMD | 50 Ohm | 100 mA | Surface Mount | AC, DC | SPST-NC, SPST-NO | 7.62 mm | 0.3 in | 8-SMD | CSA, EN, UL | 85 °C | -40 °C | 1.2 VDC | Gull Wing | 350 V | 0 V |
IXYS Integrated Circuits Division XBA170S | 8-SMD | 50 Ohm | 100 mA | Surface Mount | AC, DC | SPST-NC, SPST-NO | 7.62 mm | 0.3 in | 8-SMD | CSA, EN, UL | 85 °C | -40 °C | 1.2 VDC | Gull Wing | 350 V | 0 V |
IXYS Integrated Circuits Division XBA170P | 8-FlatPack | 50 Ohm | 100 mA | Surface Mount | AC, DC | SPST-NC, SPST-NO | 7.62 mm | 0.3 in | 8-SMD | CSA, EN, UL | 85 °C | -40 °C | 1.2 VDC | Gull Wing | 350 V | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XBA170 Series
Solid State SPST-NO + SPST-NC (1 Form A and B) 8-SMD (0.300", 7.62mm)
