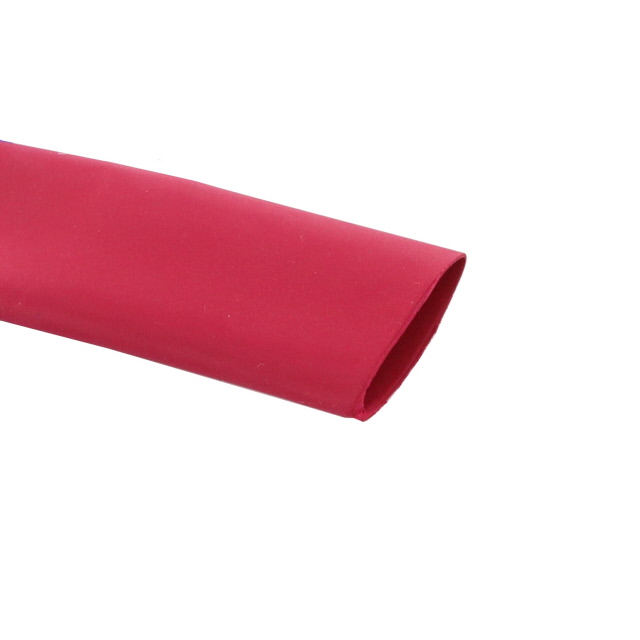

B2 3/8 RED SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 3/8" RED FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sumitube® Solution Guide

B2 3/8 RED SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 3/8" RED FOOT

Deep-Dive with AI

DocumentsDatasheet Sumitube® Solution Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 1.28
		5	$ 1.16
		10	$ 0.88
		25	$ 0.84
		50	$ 0.79
		100	$ 0.74

Description

General part information

B2 3/8 Series

Heat Shrink Tubing, Flexible 0.394" (10.01mm) 2 to 1 Red Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Datasheet

Sumitube® Solution Guide

Datasheet

Specification	B2 3/8 RED SPL	B2 3/8 Series

Color	Red	Blue, Green, Yellow, White, Black, Red
Features	Flame Retardant	Flame Retardant, UV Resistant
Inner Diameter - Recovered [diameter]	4.75 mm	4.75 mm
Inner Diameter - Recovered [diameter]	0.187 in	0.187 in
Inner Diameter - Supplied [diameter]	0.394 in	0.394 in
Inner Diameter - Supplied [diameter]	10.01 mm	10.01 mm
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1.22 m
Length	-	4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness [custom]	0.025 "	0.025 "
Recovered Wall Thickness [custom]	0.64 mm	0.64 mm
Shrink Temperature	90 °C	90 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	61 m	61 m
Spool Size	200 '	200 '
Type	Tubing, Flexible	Tubing, Flexible

Part	Material	Shrink Temperature	Color	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Shrinkage Ratio	Length [x]	Length [x]	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Spool Size	Spool Size	Length
Sumitomo Electric Interconnect Products, Inc. B2 3/8 BLUE 4FT	Polyolefin (PO), Irradiated	90 °C	Blue	0.025 "	0.64 mm	2 to 1	1.22 m	4 ft	Tubing, Flexible	4.75 mm	0.187 in	135 °C	-55 °C	Flame Retardant	0.394 in	10.01 mm
Sumitomo Electric Interconnect Products, Inc. B2 3/8 GREEN SPL	Polyolefin (PO), Irradiated	90 °C	Green	0.025 "	0.64 mm	2 to 1			Tubing, Flexible	4.75 mm	0.187 in	135 °C	-55 °C	Flame Retardant	0.394 in	10.01 mm	61 m	200 '	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 YELLOW 4FT	Polyolefin (PO), Irradiated	90 °C	Yellow	0.025 "	0.64 mm	2 to 1	1.22 m	4 ft	Tubing, Flexible	4.75 mm	0.187 in	135 °C	-55 °C	Flame Retardant	0.394 in	10.01 mm
Sumitomo Electric Interconnect Products, Inc. B2 3/8 BLUE SPL	Polyolefin (PO), Irradiated	90 °C	Blue	0.025 "	0.64 mm	2 to 1			Tubing, Flexible	4.75 mm	0.187 in	135 °C	-55 °C	Flame Retardant	0.394 in	10.01 mm	61 m	200 '	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 GREEN 4FT	Polyolefin (PO), Irradiated	90 °C	Green	0.025 "	0.64 mm	2 to 1	1.22 m	4 ft	Tubing, Flexible	4.75 mm	0.187 in	135 °C	-55 °C	Flame Retardant	0.394 in	10.01 mm
Sumitomo Electric Interconnect Products, Inc. B2 3/8 WHITE SPL	Polyolefin (PO), Irradiated	90 °C	White	0.025 "	0.64 mm	2 to 1			Tubing, Flexible	4.75 mm	0.187 in	135 °C	-55 °C	Flame Retardant	0.394 in	10.01 mm	61 m	200 '	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 BLACK 4FT	Polyolefin (PO), Irradiated	90 °C	Black	0.025 "	0.64 mm	2 to 1	1.22 m	4 ft	Tubing, Flexible	4.75 mm	0.187 in	135 °C	-55 °C	Flame Retardant, UV Resistant	0.394 in	10.01 mm
Sumitomo Electric Interconnect Products, Inc. B2 3/8 RED 4FT	Polyolefin (PO), Irradiated	90 °C	Red	0.025 "	0.64 mm	2 to 1	1.22 m	4 ft	Tubing, Flexible	4.75 mm	0.187 in	135 °C	-55 °C	Flame Retardant	0.394 in	10.01 mm
Sumitomo Electric Interconnect Products, Inc. B2 3/8 RED SPL	Polyolefin (PO), Irradiated	90 °C	Red	0.025 "	0.64 mm	2 to 1			Tubing, Flexible	4.75 mm	0.187 in	135 °C	-55 °C	Flame Retardant	0.394 in	10.01 mm	61 m	200 '	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 YELLOW SPL	Polyolefin (PO), Irradiated	90 °C	Yellow	0.025 "	0.64 mm	2 to 1			Tubing, Flexible	4.75 mm	0.187 in	135 °C	-55 °C	Flame Retardant	0.394 in	10.01 mm	61 m	200 '	Enter Number of Feet in Order Quantity

Part

Material

Shrink Temperature

Color

Recovered Wall Thickness [custom]

Shrinkage Ratio

Length [x]

Type

Inner Diameter - Recovered [diameter]

Operating Temperature [Max]

Operating Temperature [Min]

Features

Inner Diameter - Supplied [diameter]

Spool Size

Length

Sumitomo Electric Interconnect Products, Inc.

B2 3/8 BLUE 4FT

Polyolefin (PO), Irradiated

90 °C

Blue

0.025 "

0.64 mm

2 to 1

1.22 m

4 ft

Tubing, Flexible

4.75 mm

0.187 in

135 °C

-55 °C

Flame Retardant

0.394 in

10.01 mm

Sumitomo Electric Interconnect Products, Inc.

B2 3/8 GREEN SPL

Polyolefin (PO), Irradiated

90 °C

Green

0.025 "

0.64 mm

2 to 1

Tubing, Flexible

4.75 mm

0.187 in

135 °C

-55 °C

Flame Retardant

0.394 in

10.01 mm

61 m

200 '

Enter Number of Feet in Order Quantity

Sumitomo Electric Interconnect Products, Inc.

B2 3/8 YELLOW 4FT

Polyolefin (PO), Irradiated

90 °C

Yellow

0.025 "

0.64 mm

2 to 1

1.22 m

4 ft

Tubing, Flexible

4.75 mm

0.187 in

135 °C

-55 °C

Flame Retardant

0.394 in

10.01 mm

Sumitomo Electric Interconnect Products, Inc.

B2 3/8 BLUE SPL

Polyolefin (PO), Irradiated

90 °C

Blue

0.025 "

0.64 mm

2 to 1

Tubing, Flexible

4.75 mm

0.187 in

135 °C

-55 °C

Flame Retardant

0.394 in

10.01 mm

61 m

200 '

Enter Number of Feet in Order Quantity

Sumitomo Electric Interconnect Products, Inc.

B2 3/8 GREEN 4FT

Polyolefin (PO), Irradiated

90 °C

Green

0.025 "

0.64 mm

2 to 1

1.22 m

4 ft

Tubing, Flexible

4.75 mm

0.187 in

135 °C

-55 °C

Flame Retardant

0.394 in

10.01 mm

Sumitomo Electric Interconnect Products, Inc.

B2 3/8 WHITE SPL

Polyolefin (PO), Irradiated

90 °C

White

0.025 "

0.64 mm

2 to 1

Tubing, Flexible

4.75 mm

0.187 in

135 °C

-55 °C

Flame Retardant

0.394 in

10.01 mm

61 m

200 '

Enter Number of Feet in Order Quantity

Sumitomo Electric Interconnect Products, Inc.

B2 3/8 BLACK 4FT

Polyolefin (PO), Irradiated

90 °C

Black

0.025 "

0.64 mm

2 to 1

1.22 m

4 ft

Tubing, Flexible

4.75 mm

0.187 in

135 °C

-55 °C

Flame Retardant, UV Resistant

0.394 in

10.01 mm

Sumitomo Electric Interconnect Products, Inc.

B2 3/8 RED 4FT

Polyolefin (PO), Irradiated

90 °C

Red

0.025 "

0.64 mm

2 to 1

1.22 m

4 ft

Tubing, Flexible

4.75 mm

0.187 in

135 °C

-55 °C

Flame Retardant

0.394 in

10.01 mm

Sumitomo Electric Interconnect Products, Inc.

B2 3/8 RED SPL

Polyolefin (PO), Irradiated

90 °C

Red

0.025 "

0.64 mm

2 to 1

Tubing, Flexible

4.75 mm

0.187 in

135 °C

-55 °C

Flame Retardant

0.394 in

10.01 mm

61 m

200 '

Enter Number of Feet in Order Quantity

Sumitomo Electric Interconnect Products, Inc.

B2 3/8 YELLOW SPL

Polyolefin (PO), Irradiated

90 °C

Yellow

0.025 "

0.64 mm

2 to 1

Tubing, Flexible

4.75 mm

0.187 in

135 °C

-55 °C

Flame Retardant

0.394 in

10.01 mm

61 m

200 '

Enter Number of Feet in Order Quantity
