LCCA30462-FT1
ActivePasternack
COAX CBL BNC TO TNC 12"
LCCA30462-FT1
ActivePasternack
COAX CBL BNC TO TNC 12"
Description
General part information
LCCA30462-FT1

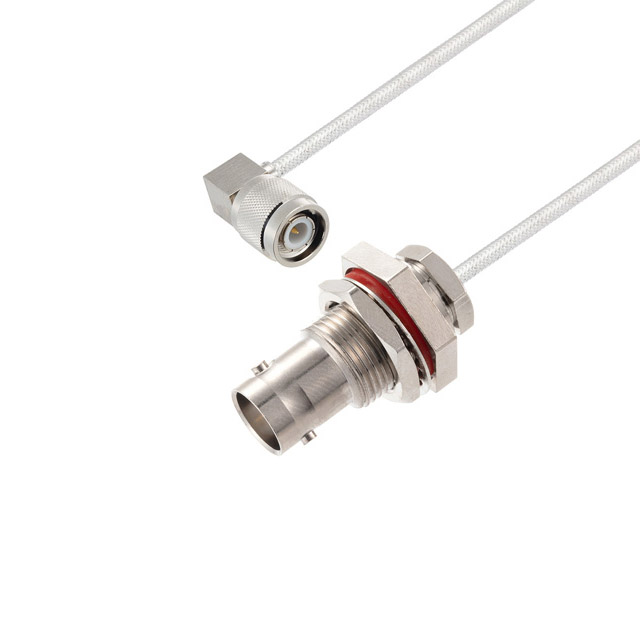

Cable Assembly Coaxial BNC to TNC LC141TB 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30462-FT1 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC141TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC, TNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
