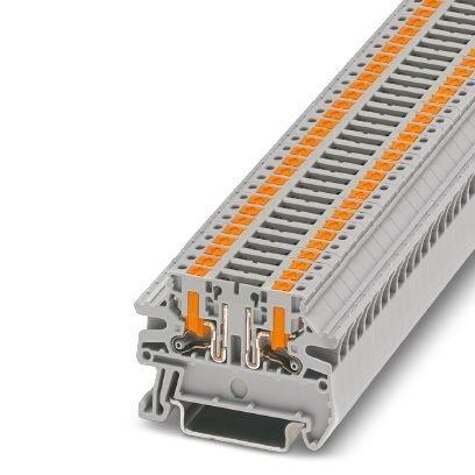

1079061
ActivePhoenix Contact
PTVC 2 5-TG
1079061
ActivePhoenix Contact
PTVC 2 5-TG
Description
General part information
1079061
PTVC 2 5-TG
Technical Specifications
Parameters and characteristics for this part
| Specification | 1079061 |
|---|---|
| Color | Gray |
| Current - IEC | 20 A |
| Current - UL | 20 A |
| Disconnect Type | Open |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 5.2 mm |
| Termination Style | Push In |
| Type | Disconnect |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
