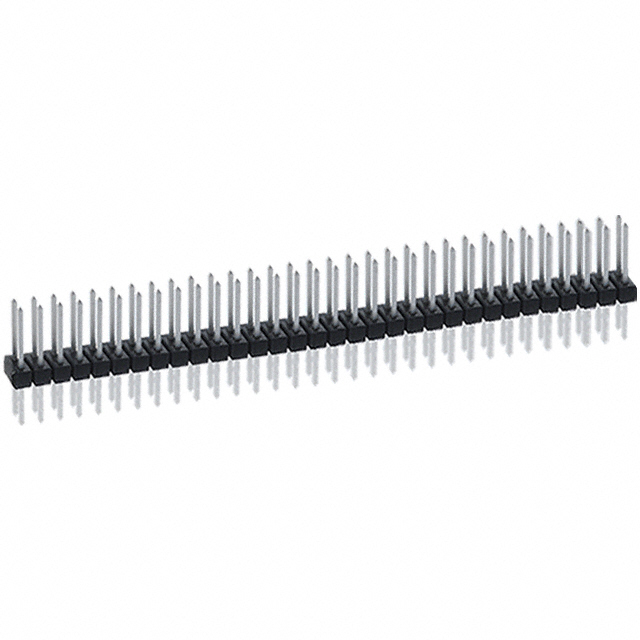

PEC32DFBN

Active

Sullins Connector Solutions

CONN HEADER VERT 64POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC32DFBN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	16.21 mm
Overall Contact Length	0.638 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC32 Series

Part	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Rows	Material Flammability Rating	Style	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating	Fastening Type	Connector Type	Insulation Material	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Shape	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Type	Contact Material	Insulation Color	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PEC32SBCN	Through Hole Right Angle	0.1 in	2.54 mm	1	UL94 V-0	Board to Board Cable	Tin	0.23 in	5.84 mm	Push-Pull	Breakaway Header	Polybutylene Terephthalate (PBT)	All	3.56 mm	0.14 in	Square	Solder	2.54 µm	100 µin	125 °C	-65 ░C	2.54 çm	100 çin	3 A	Male Pin	Phosphor Bronze	Black	Unshrouded	7.62 mm	0.3 "
Sullins Connector Solutions PEC32DAAN	Through Hole	0.1 in	2.54 mm	2	UL94 V-0	Board to Board Cable	Tin	0.23 in	5.84 mm	Push-Pull	Breakaway Header	Polybutylene Terephthalate (PBT)	All	2.54 mm	0.1 in	Square	Solder	2.54 µm	100 µin	125 °C	-65 ░C	2.54 çm	100 çin	3 A	Male Pin	Phosphor Bronze	Black	Unshrouded	3.05 mm	0.12 in	64	0.45 "	11.43 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC32DAGN	Through Hole	0.1 in	2.54 mm	2	UL94 V-0	Board to Board Cable	Tin	0.23 in	5.84 mm	Push-Pull	Breakaway Header	Polybutylene Terephthalate (PBT)	All	2.54 mm	0.1 in	Square	Solder	2.54 µm	100 µin	125 °C	-65 ░C	2.54 çm	100 çin	3 A	Male Pin	Phosphor Bronze	Black	Unshrouded	18.29 mm	0.72 "	64	1.05 in	26.67 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC32SAHN	Through Hole	0.1 in	2.54 mm	1	UL94 V-0	Board to Board Cable	Tin	0.23 in	5.84 mm	Push-Pull	Breakaway Header	Polybutylene Terephthalate (PBT)	All	2.54 mm	0.1 in	Square	Solder	2.54 µm	100 µin	125 °C	-65 ░C	2.54 çm	100 çin	3 A	Male Pin	Phosphor Bronze	Black	Unshrouded	20.83 mm	0.82 in		1.15 in	29.21 mm
Sullins Connector Solutions PEC32SADN	Through Hole	0.1 in	2.54 mm	1	UL94 V-0	Board to Board Cable	Tin	0.23 in	5.84 mm	Push-Pull	Breakaway Header	Polybutylene Terephthalate (PBT)	All	2.54 mm	0.1 in	Square	Solder	2.54 µm	100 µin	125 °C	-65 ░C	2.54 çm	100 çin	3 A	Male Pin	Phosphor Bronze	Black	Unshrouded	10.67 mm	0.42 in		0.75 in	19.05 mm
Sullins Connector Solutions PEC32SACN	Through Hole	0.1 in	2.54 mm	1	UL94 V-0	Board to Board Cable	Tin	0.23 in	5.84 mm	Push-Pull	Breakaway Header	Polybutylene Terephthalate (PBT)	All	2.54 mm	0.1 in	Square	Solder	2.54 µm	100 µin	125 °C	-65 ░C	2.54 çm	100 çin	3 A	Male Pin	Phosphor Bronze	Black	Unshrouded	8.13 mm	0.32 in			0.65 in			16.51 mm
Sullins Connector Solutions PEC32DFBN	Through Hole	0.1 in	2.54 mm	2	UL94 V-0	Board to Board Cable	Tin	0.318 "		Push-Pull	Breakaway Header	Polybutylene Terephthalate (PBT)	All	2.54 mm	0.1 in	Square	Solder	2.54 µm	100 µin	125 °C	-65 ░C	2.54 çm	100 çin	3 A	Male Pin	Phosphor Bronze	Black	Unshrouded			64	0.638 in	16.21 mm	2.54 mm	0.1 in		8.08 mm	0.22 in	5.58 mm
Sullins Connector Solutions PEC32SAAN	Through Hole	0.1 in	2.54 mm	1	UL94 V-0	Board to Board Cable	Tin	0.23 in	5.84 mm	Push-Pull	Breakaway Header	Polybutylene Terephthalate (PBT)	All	2.54 mm	0.1 in	Square	Solder	2.54 µm	100 µin	125 °C	-65 ░C	2.54 çm	100 çin	3 A	Male Pin	Phosphor Bronze	Black	Unshrouded	3.05 mm	0.12 in		0.45 "	11.43 mm
Sullins Connector Solutions PEC32SFEN	Through Hole	0.1 in	2.54 mm	1	UL94 V-0	Board to Board Cable	Tin	0.318 "		Push-Pull	Breakaway Header	Polybutylene Terephthalate (PBT)	All	2.54 mm	0.1 in	Square	Solder	2.54 µm	100 µin	125 °C	-65 ░C	2.54 çm	100 çin	3 A	Male Pin	Phosphor Bronze	Black	Unshrouded				0.938 in	23.83 mm				8.08 mm	0.52 "	13.21 mm
Sullins Connector Solutions PEC32SAGN	Through Hole	0.1 in	2.54 mm	1	UL94 V-0	Board to Board Cable	Tin	0.23 in	5.84 mm	Push-Pull	Breakaway Header	Polybutylene Terephthalate (PBT)	All	2.54 mm	0.1 in	Square	Solder	2.54 µm	100 µin	125 °C	-65 ░C	2.54 çm	100 çin	3 A	Male Pin	Phosphor Bronze	Black	Unshrouded	18.29 mm	0.72 "		1.05 in	26.67 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.95
		10	$ 3.79
		100	$ 2.94
		500	$ 2.48
		1000	$ 2.38

Description

General part information

PEC32 Series

Connector Header Through Hole 64 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
