A7B-M
ActiveOmron Electronics Inc-EMC Div

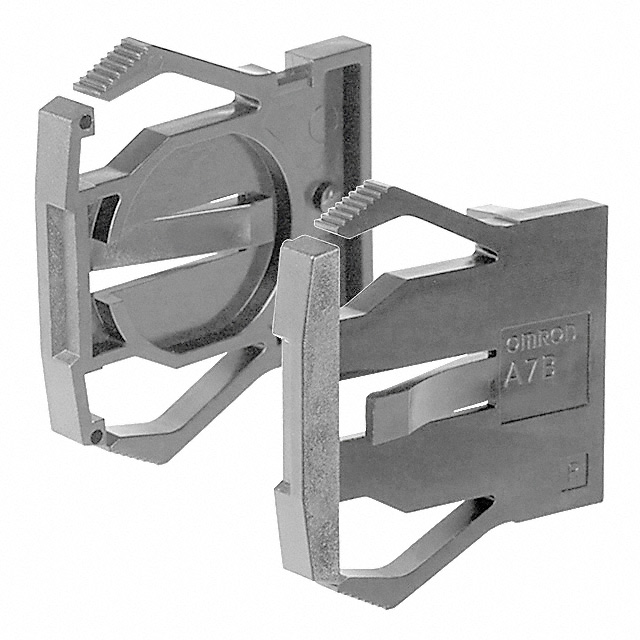

END CAP LIGHT GRAY A7B SERIES
Deep-Dive with AI
Search across all available documentation for this part.
A7B-M
ActiveOmron Electronics Inc-EMC Div
END CAP LIGHT GRAY A7B SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7B-M | A7B Series |
|---|---|---|
| - | - | |
| Accessory Type | End Cap | End Cap, Spacer, Connector |
| Actuator Type | - | Pushwheel |
| Color | - | Light Gray, Black |
| Contact Rating @ Voltage | - | 0.1 - 50 VDC |
| Depth Behind Flange | - | 43.5 mm |
| Depth Behind Flange | - | 32.5 mm |
| Display Characters - Height | - | 3.2 - 4.8 mm |
| Display Characters - Height | - | 0.126 - 0.189 in |
| Electrical Life | - | 50000 Cycles |
| End Caps | - | Sold Separately |
| Features | - | Diode, Locking Actuator, External Stoppers, Internal Stoppers, Red Characters |
| For Use With/Related Products | Omron A7B Series | Omron A7B Series, A7BS, A7BL Series, SW266 ~ SW269-ND |
| Mounting Type | - | Panel Mount, Snap-In |
| Number of Sections | - | 1 |
| Operating Temperature | - | -10 °C |
| Operating Temperature | - | 65 °C |
| Output Code | - | BCD, SPDT, Hexadecimal |
| Read Out | - | 0 |
| Read Out | - | 9 |
| Read Out | - | +/- |
| Read Out | - | F, 9 |
| Read Out | - | 0, A |
| Section Width | - | 8 mm |
| Section Width | - | 0.315 in |
| Termination Style | - | Card Edge/Solder Pad with Component Mounting, Solder Pad, Card Edge |
A7B Series
SWITCH THUMB BCD 0.1A 50V
| Part | Termination Style | Features | Operating Temperature [Min] | Operating Temperature [Max] | Electrical Life | Mounting Type | Number of Sections | Display Characters - Height [z] | Display Characters - Height [z] | Depth Behind Flange | Section Width [x] | Section Width [x] | Output Code | End Caps | Read Out [Min] | Read Out [Max] | Contact Rating @ Voltage [x] | Actuator Type | Color | Read Out | Depth Behind Flange [z] | Accessory Type | For Use With/Related Products | Read Out [Max] | Read Out [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A7BS-207-D | Card Edge/Solder Pad with Component Mounting | Diode | -10 °C | 65 °C | 50000 Cycles | Panel Mount, Snap-In | 1 | 4.8 mm | 0.189 in | 43.5 mm | 8 mm | 0.315 in | BCD | Sold Separately | 0 | 9 | 0.1 A, 28 VDC, 50 VAC | Pushwheel | Light Gray | ||||||
Omron Electronics Inc-EMC Div A7BS-207-PM | Card Edge/Solder Pad with Component Mounting | -10 °C | 65 °C | 50000 Cycles | Panel Mount, Snap-In | 1 | 4.8 mm | 0.189 in | 43.5 mm | 8 mm | 0.315 in | SPDT | Sold Separately | 0.1 A, 28 VDC, 50 VAC | Pushwheel | Light Gray | +/- | ||||||||
Omron Electronics Inc-EMC Div A7BL-206-1 | Card Edge, Solder Pad | Locking Actuator | -10 °C | 65 °C | 50000 Cycles | Panel Mount, Snap-In | 1 | 4.8 mm | 0.189 in | 8 mm | 0.315 in | BCD | Sold Separately | 0 | 9 | 0.1 A, 28 VDC, 50 VAC | Pushwheel | Black | 32.5 mm | ||||||
Omron Electronics Inc-EMC Div A7BS-206-S | Card Edge, Solder Pad | External Stoppers | -10 °C | 65 °C | 50000 Cycles | Panel Mount, Snap-In | 1 | 4.8 mm | 0.189 in | 8 mm | 0.315 in | BCD | Sold Separately | 0 | 9 | 0.1 A, 28 VDC, 50 VAC | Pushwheel | Light Gray | 32.5 mm | ||||||
Omron Electronics Inc-EMC Div A7BS-207-S05-1 | Card Edge/Solder Pad with Component Mounting | Internal Stoppers | -10 °C | 65 °C | 50000 Cycles | Panel Mount, Snap-In | 1 | 4.8 mm | 0.189 in | 43.5 mm | 8 mm | 0.315 in | BCD | Sold Separately | 0 | 9 | 0.1 A, 28 VDC, 50 VAC | Pushwheel | Black | ||||||
Omron Electronics Inc-EMC Div A7BS-206-10-1 | Card Edge, Solder Pad | Red Characters | -10 °C | 65 °C | 50000 Cycles | Panel Mount, Snap-In | 1 | 4.8 mm | 0.189 in | 8 mm | 0.315 in | BCD | Sold Separately | 0 | 9 | 0.1 A, 28 VDC, 50 VAC | Pushwheel | Black | 32.5 mm | ||||||
Omron Electronics Inc-EMC Div A7B-M | End Cap | Omron A7B Series | |||||||||||||||||||||||
Omron Electronics Inc-EMC Div A7B-PU-1 | Spacer | A7BS, A7BL Series | |||||||||||||||||||||||
Omron Electronics Inc-EMC Div A7BS-254-1 | Card Edge, Solder Pad | -10 °C | 65 °C | 50000 Cycles | Panel Mount, Snap-In | 1 | 3.2 mm | 0.126 " | 8 mm | 0.315 in | Hexadecimal | Sold Separately | 0.1 A, 28 VDC, 50 VAC | Pushwheel | Black | 32.5 mm | 9, F | 0, A | |||||||
Omron Electronics Inc-EMC Div A7BPC1 |
