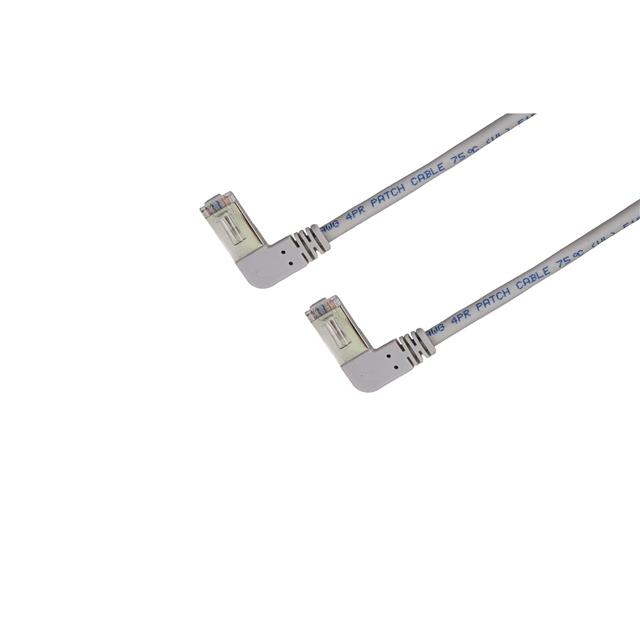

Specification	PN-S5GL-RARA-10-F

Cable Type	Round LSZH Cable
Color	Gray
Connector Type	Ethernet, RJ45, Right Angle, Plug to Plug
Features	OD 5.3mm, Molded STP Connectors, 26AWG FUTP, LSZH Jacket
Length	10 ft
Mounting Type	Free Hanging (In-Line)
Number of Contacts	8
Number of Positions	8
Shielding	Shielded
Style	LSZH Environmental, Cat5e

PN-S5GL Series

...

Part	Connector Type	Number of Positions	Number of Contacts	Cable Type	Mounting Type	Length	Style	Color	Shielding	Features
PT Speed PN-S5GL-STRA-07.5-F	Ethernet Plug to Plug Right Angle RJ45	8	8	Round LSZH Cable	Free Hanging (In-Line)	7.5 ft	Cat5e LSZH Environmental	Gray	Shielded	26AWG FUTP LSZH Jacket OD 5.3mm STP Connectors
PT Speed PN-S5GL-STUP-02.5-F	Angled Up Ethernet Plug to Plug RJ45	8	8	Round LSZH Cable	Free Hanging (In-Line)	2.5 ft	Cat5e LSZH Environmental	Gray	Shielded	26AWG FUTP LSZH Jacket OD 5.3mm STP Connectors
PT Speed PN-S5GL-STDN-05.5-F	Angled Down Ethernet Plug to Plug RJ45	8	8	Round LSZH Cable	Free Hanging (In-Line)	5.5 ft	Cat5e LSZH Environmental	Gray	Shielded	26AWG FUTP LSZH Jacket OD 5.3mm STP Connectors
PT Speed PN-S5GL-STUP-07-F	Angled Up Ethernet Plug to Plug RJ45	8	8	Round LSZH Cable	Free Hanging (In-Line)	7 ft	Cat5e LSZH Environmental	Gray	Shielded	26AWG FUTP LSZH Jacket OD 5.3mm STP Connectors
PT Speed PN-S5GL-STDN-05-F	Angled Down Ethernet Plug to Plug RJ45	8	8	Round LSZH Cable	Free Hanging (In-Line)	5 ft	Cat5e LSZH Environmental	Gray	Shielded	26AWG FUTP LSZH Jacket OD 5.3mm STP Connectors
PT Speed PN-S5GL-STST-02-F	Ethernet Plug to Plug RJ45	8	8	Round LSZH Cable	Free Hanging (In-Line)	24 in	Cat5e LSZH Environmental	Gray	Shielded	26AWG FUTP LSZH Jacket OD 5.3mm STP Connectors
PT Speed PN-S5GL-STDN-06-F	Angled Down Ethernet Plug to Plug RJ45	8	8	Round LSZH Cable	Free Hanging (In-Line)	6 ft	Cat5e LSZH Environmental	Gray	Shielded	26AWG FUTP LSZH Jacket OD 5.3mm STP Connectors
PT Speed PN-S5GL-STDN-09-F	Angled Down Ethernet Plug to Plug RJ45	8	8	Round LSZH Cable	Free Hanging (In-Line)	9 ft	Cat5e LSZH Environmental	Gray	Shielded	26AWG FUTP LSZH Jacket OD 5.3mm STP Connectors
PT Speed PN-S5GL-STUP-04-F	Angled Up Ethernet Plug to Plug RJ45	8	8	Round LSZH Cable	Free Hanging (In-Line)	48 in	Cat5e LSZH Environmental	Gray	Shielded	26AWG FUTP LSZH Jacket OD 5.3mm STP Connectors
PT Speed PN-S5GL-STDN-03-F	Angled Down Ethernet Plug to Plug RJ45	8	8	Round LSZH Cable	Free Hanging (In-Line)	3 ft	Cat5e LSZH Environmental	Gray	Shielded	26AWG FUTP LSZH Jacket OD 5.3mm STP Connectors

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
