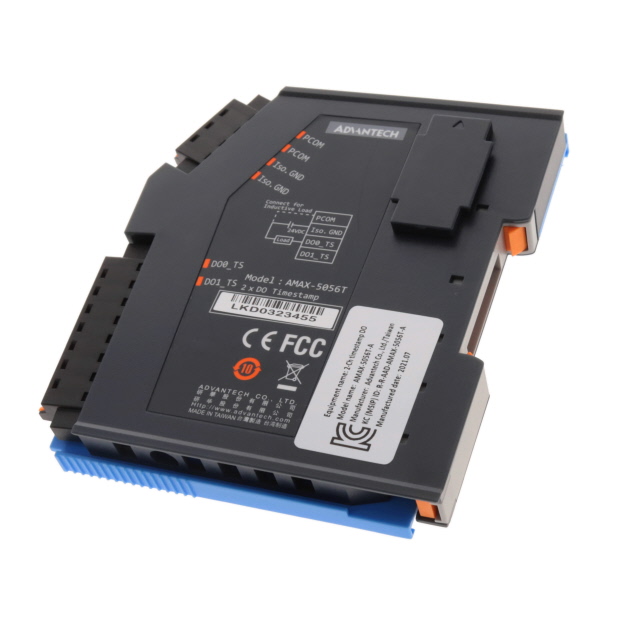

AMAX-5056T-A
ActiveAdvantech Corporation
OUTPUT MODULE 2 DIGITAL 10-30V
AMAX-5056T-A
ActiveAdvantech Corporation
OUTPUT MODULE 2 DIGITAL 10-30V
Description
General part information
AMAX-5056T-A
Output Module DIN Rail 10 ~ 30VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | AMAX-5056T-A |
|---|---|
| Approval Agency | FCC, CE |
| For Use With/Related Products | AMAX-5000 Series |
| Input Types | Digital |
| Mounting Type | DIN Rail |
| Number of Inputs | 2 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Pluggable Screw Terminal |
| Type | Output Module |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
