97-4106A-14S-2S
ActiveAmphenol Aerospace Operations
MIL-DTL-5015 GENERAL DUTY STYLE
97-4106A-14S-2S
ActiveAmphenol Aerospace Operations
MIL-DTL-5015 GENERAL DUTY STYLE
Description
General part information
97-4106A-14S-2S

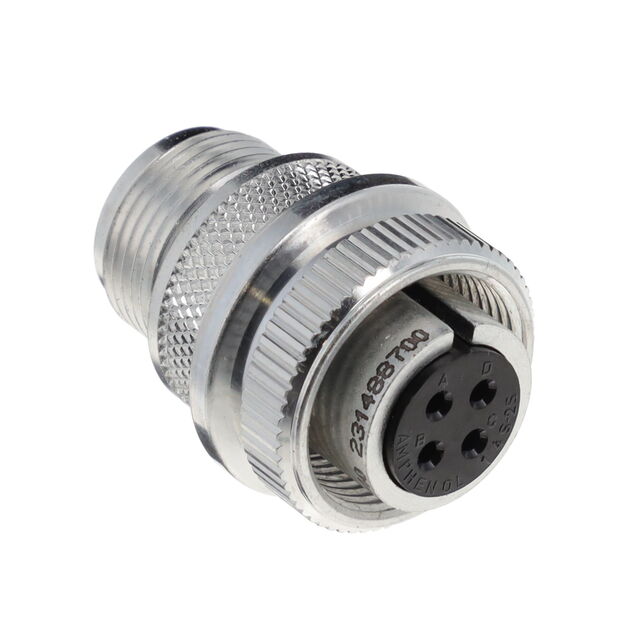

4 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 97-4106A-14S-2S |
|---|---|
| Applications | Automotive, Industrial |
| Backshell Material, Plating | Aluminum Alloy, Olive Drab Cadmium |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 13 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Insert Material | Diallyl Phthalate, DAP |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 14S-2 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating (AC) | 200 VAC |
| Voltage Rating (DC) | 250 VDC |
