Description
General part information

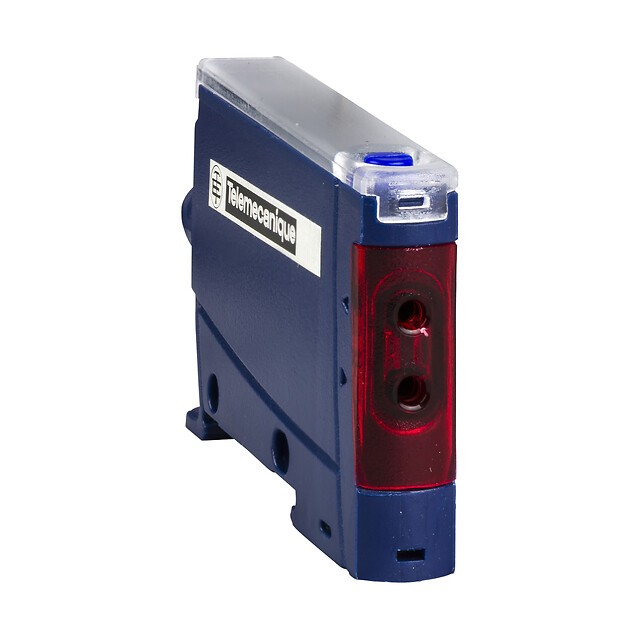

XUDA2NSMM8
PHOTOELECTRIC SENSOR, NPN/SPST-NO/NC, 4 PIN M8 CONNECTOR, 24VDC, PBT, OSISENSE XU SERIES
Technical Specifications
Parameters and characteristics for this part
| Specification | XUDA2NSMM8 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | M8, Connector |
| Ingress Protection | IP65, IP64 |
| Light Source | Red LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | NO, NPN-NC |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
