Description
General part information
TP-105

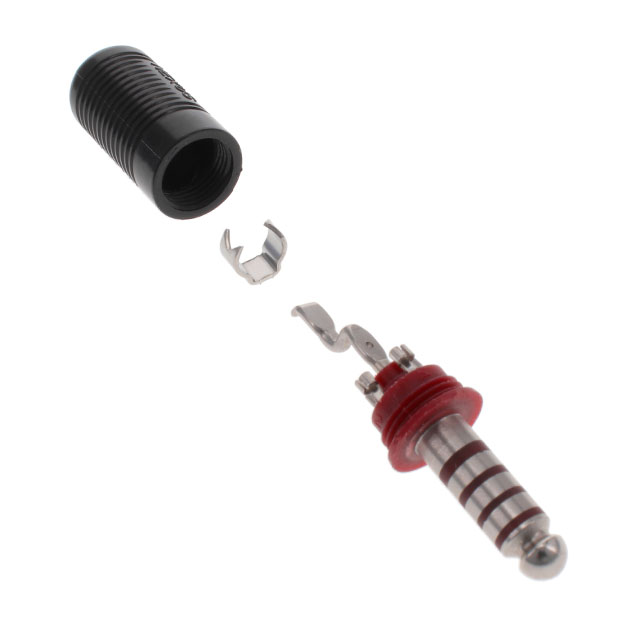

Phone Plug 5 Conductor (TRRRS) Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TP-105 |
|---|---|
| Actual Diameter | 0.281 in |
| Body Color | Silver, Red |
| Cable Opening | 0.272 in |
| Connector Type | Phone Plug |
| Contact Material - Plating | Nickel |
| Gender | Male |
| Housing Material | Plastic |
| Includes | Handle, Strain Relief, Connector |
| Includes Total Count | 3 pcs |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.901 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 5 Conductors |
| Number of Contacts | 5 Contacts |
| Shielding | Unshielded |
| Signal Lines | TRRRS |
| Signal Lines (Count) | 5 Conductor |
| Termination | Solder |
