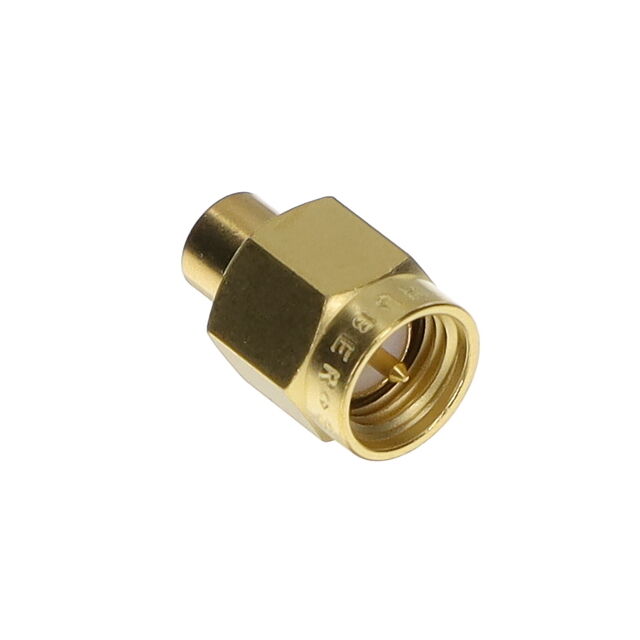

11_SMA-50-3-39/111_YH
ActiveHuber+Suhner, Inc.
RF SMA CONNECTOR, MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11_SMA-50-3-39/111_YH
ActiveHuber+Suhner, Inc.
RF SMA CONNECTOR, MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG, ROHS COMPLIANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 11_SMA-50-3-39/111_YH |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-141 |
| Center Contact Material | Bronze |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.62 | |
| 10 | $ 12.07 | |||
| 25 | $ 11.61 | |||
| 50 | $ 11.14 | |||
| 100 | $ 10.53 | |||
| 250 | $ 9.60 | |||
| 500 | $ 8.98 | |||
| 1000 | $ 8.23 | |||
Description
General part information
11_SMA-50-3-39/111_YH
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
