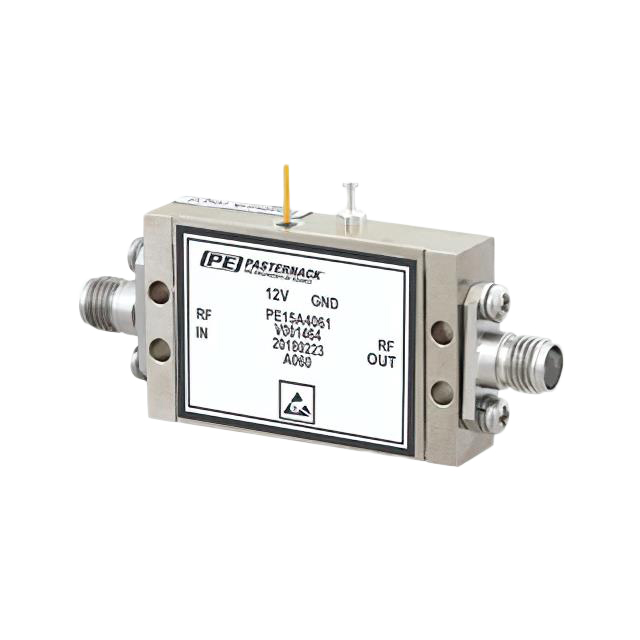

PE15A4061
ActivePasternack
27 DBM P1DB, 6 GHZ TO 18 GHZ, ME
PE15A4061
ActivePasternack
27 DBM P1DB, 6 GHZ TO 18 GHZ, ME
Description
General part information
PE15A4061
RF Amplifier IC Radar 6GHz ~ 18GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A4061 |
|---|---|
| Current - Supply | 800 mA |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 6 GHz |
| Gain | 30 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 7 dB |
| P1dB | 27 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
