76000788
ObsoleteDigi International

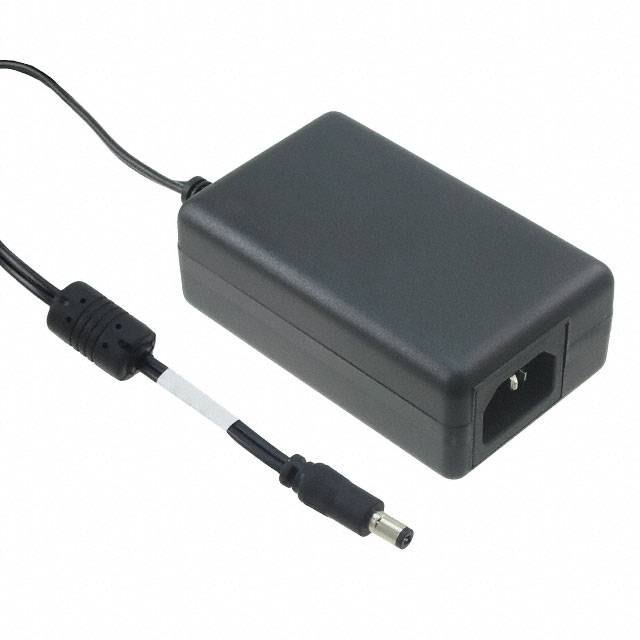

AC/DC DESKTOP ADAPTER 12V 12W
76000788
ObsoleteDigi International
AC/DC DESKTOP ADAPTER 12V 12W
Description
General part information
76000788
12V 12 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 76000788 |
|---|---|
| Approval Agency | UL, CE, cUL |
| Cord Length | 48 in |
| Current - Output (Max) | 1 A |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| Operating Temperature (Max) | 74 °C |
| Operating Temperature (Min) | -35 °C |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.1 mm |
| Output Connector Length | 9.5 mm |
| Output Connector O.D. | 5.5 mm |
| Power (Watts) | 12 W |
| Region Utilized | International |
| Size / Dimension Height | 1.34 in |
| Size / Dimension Length | 3.82 in |
| Size / Dimension Width | 2.24 in |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 12 V |
