2187658-1
ActiveTE Connectivity AMP Connectors
SW PIR RECEPTACLE 100OHM 4X6
2187658-1
ActiveTE Connectivity AMP Connectors
SW PIR RECEPTACLE 100OHM 4X6
Description
General part information
2187658-1

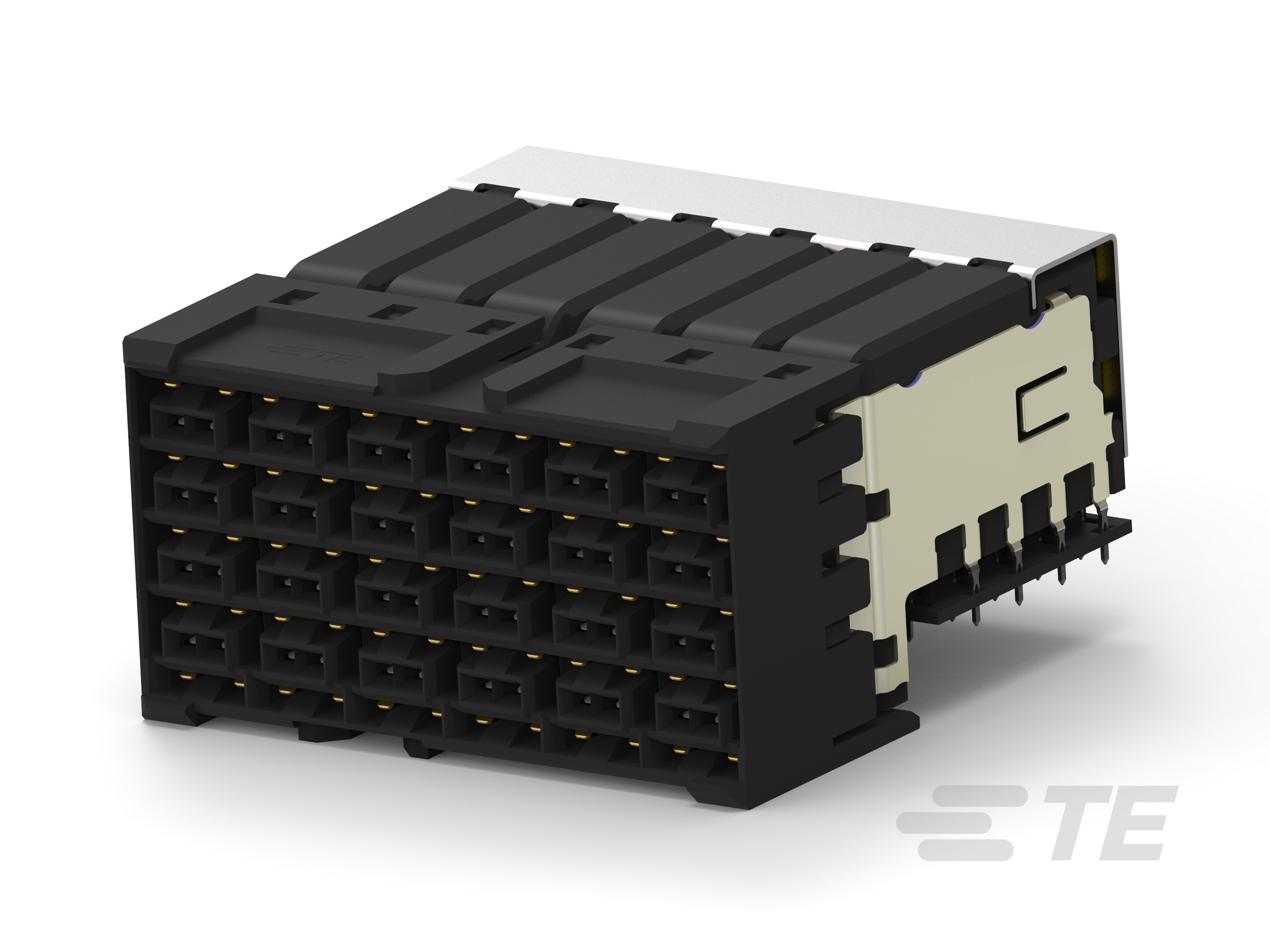

48 Position High Speed Backplane Connector, 4 Row, 6 Column, PCB Mount Receptacle, Right Angle, Unshrouded, STRADA Whisper 3.9mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 2187658-1 |
|---|---|
| Color | Black |
| Connector Style | Dual Beam, Center |
| Connector Type | Receptacle, Blade Sockets, Female Sockets |
| Connector Usage | Daughtercard |
| Differential Pairs (Typical) | 24 |
| Mounting Type | Through Hole, Right Angle |
| Number of Columns | 6 |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Pitch | 0.154 in |
| Termination | Press-Fit |
