2059-903
ActiveWAGO Corporation

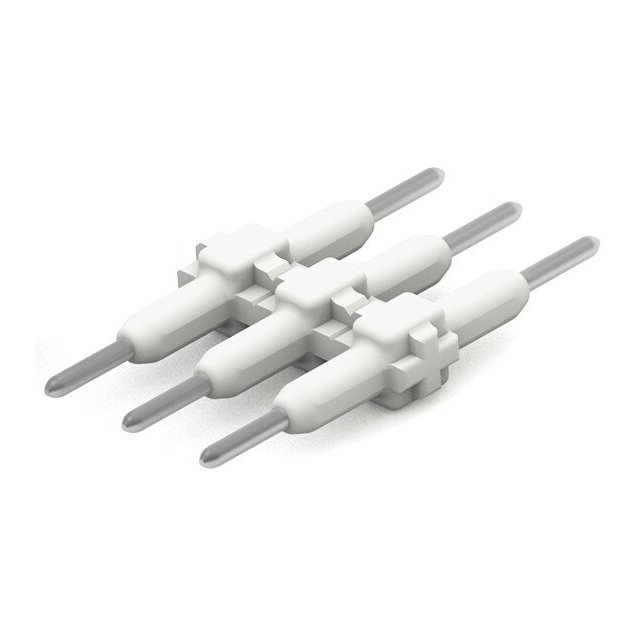

BOARD-TO-BOARD LINK, PIN SPACING 3 MM, 3-POLE, LENGTH 15.3 MM
2059-903
ActiveWAGO Corporation
BOARD-TO-BOARD LINK, PIN SPACING 3 MM, 3-POLE, LENGTH 15.3 MM
Description
General part information
2059-903
SSL Connector 3 Position Jumper Board to Board 0.118" (3.00mm) Poke-In
Technical Specifications
Parameters and characteristics for this part
| Specification | 2059-903 |
|---|---|
| Connector Type | Jumper |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 3 A |
| Housing Color | White |
| Housing Material | PA, Polyamide, Nylon 6/6 |
| Mating Cycles | 10 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -60 °C |
| Pitch | 0.118 in |
| Style | Board |
| Termination | Poke-In |
| Voltage Rating | 320 V |
