Description
General part information

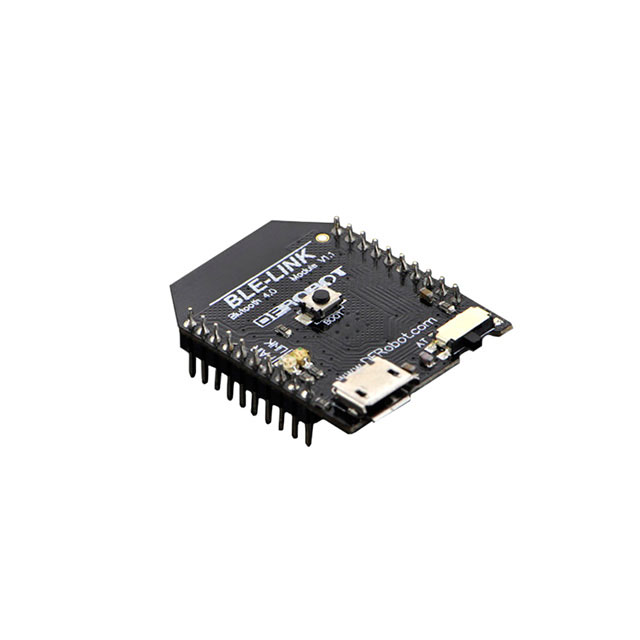

TEL0073
Bluetooth Bluetooth v4.0 Transceiver Module 2.4GHz PCB Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TEL0073 |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving | 8.7 mA |
| Current - Transmitting | 11 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Protocol | Bluetooth v4.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -93 dBm |
| Serial Interfaces | USB |
| Utilized IC / Part | CC2540 |
| Voltage - Supply | 3.3 V |
