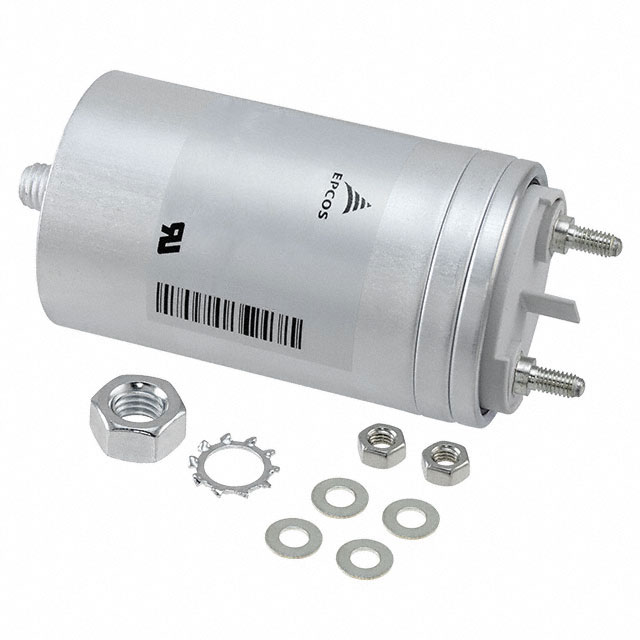

B32361A4206J080
ActiveEPCOS - TDK Electronics
CAP FILM 20UF 5% 480VAC RADIAL
B32361A4206J080
ActiveEPCOS - TDK Electronics
CAP FILM 20UF 5% 480VAC RADIAL
Description
General part information
B32361A4206J080
20 µF Film Capacitor 480V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | B32361A4206J080 |
|---|---|
| Applications | General Purpose |
| Capacitance | 20 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 2.756 in |
| Lead Spacing | 1.378 in |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 2.5 in |
| Termination | Threaded, Male |
| Tolerance | 5 % |
| Voltage Rating - AC | 480 VAC |
