54-00395
ActiveTensility International Corp

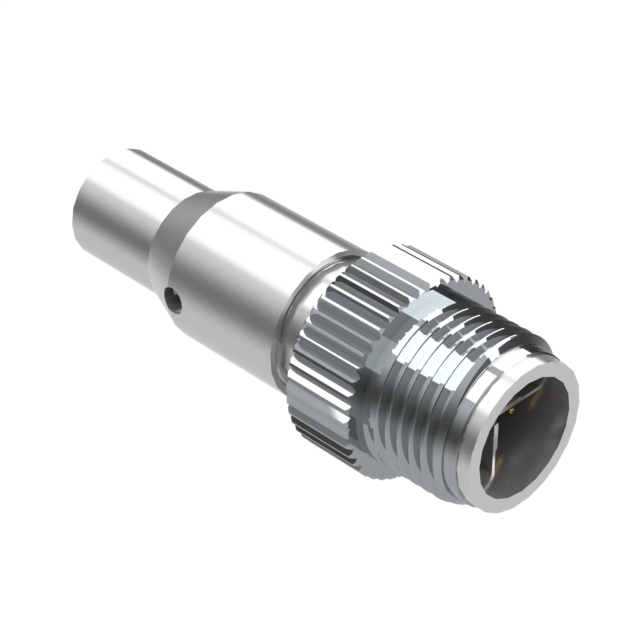

M12 X-CODE 8POS PLUG MOLDING
54-00395
ActiveTensility International Corp
M12 X-CODE 8POS PLUG MOLDING
Description
General part information
54-00395
8 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 54-00395 |
|---|---|
| Cable Opening | 0.327 in, 0.295 in |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating | 0.5 A |
| Fastening Type | Threaded |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Glass Filled, Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | X |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating | 48 V |
