PPPC042LJBN-RC

Active

Sullins Connector Solutions

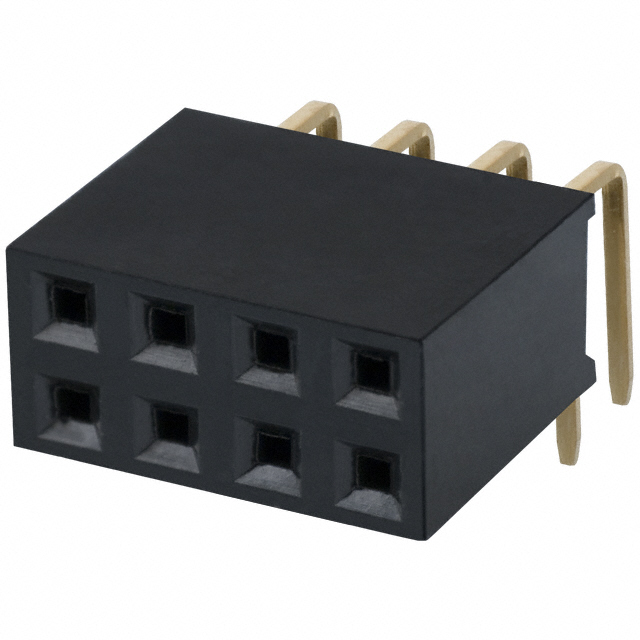

CONN HDR 8POS 0.1 GOLD PCB R/A

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 8POS 0.1 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	PPPC042LJBN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Mating	Mounting Type	Fastening Type	Material Flammability Rating	Current Rating (Amps)	Contact Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Type	Number of Positions	Insulation Color	Contact Finish - Post	Contact Shape	Contact Finish Thickness - Post	Voltage Rating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Connector Type	Contact Length - Post [x]	Insulation Height	Insulation Height
Sullins Connector Solutions PPPC042LJBN-RC	Flash	0.1 in	2.54 mm	Polyester	Gold	Through Hole Right Angle	Push-Pull	UL94 V-0	3 A	Phosphor Bronze	Solder	-40 °C	105 ░C	2	Female Socket	8	Black	Gold	Square	Flash	250 VDC	3.15 mm	0.124 "	2.54 mm	0.1 in	All	Header
Sullins Connector Solutions PPPC042LFBN-RC	Flash	0.1 in	2.54 mm	Polyester	Gold	Through Hole	Push-Pull	UL94 V-0	3 A	Phosphor Bronze	Solder	-40 °C	105 ░C	2	Female Socket	8	Black	Gold	Square	Flash	250 VDC	3.2 mm		2.54 mm	0.1 in	All	Header	0.126 in	0.335 "	8.51 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
