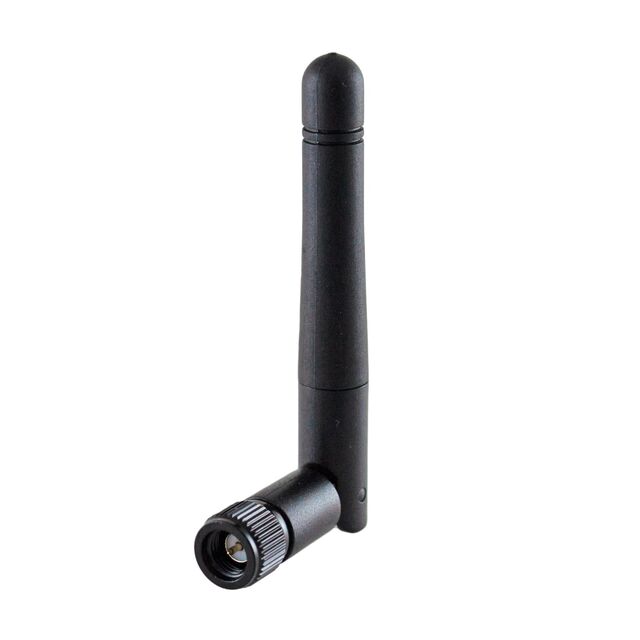

IWX-282BRSXB
ActiveJoymax Electronics
ANT 2.4 WHIP RP-SMA PLUG FEMALE
IWX-282BRSXB
ActiveJoymax Electronics
ANT 2.4 WHIP RP-SMA PLUG FEMALE
Description
General part information
IWX-282BRSXB
RF ANTENNA Bluetooth, ISM, WiFi, ZigBee Whip, Tilt RP-SMA Female Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | IWX-282BRSXB |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | 802.11b/g, IoT, Thread, Bluetooth, Zigbee™, ISM, ZigBee, WiFi, Wi-Fi |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 2.4 dBi |
| Height (Max) | 3.307 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max | 1 VA |
| Return Loss | -12.7 dB |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Termination | RP-SMA Female |
| Termination Type | RP-SMA Male |
| VSWR | 1.6 |
