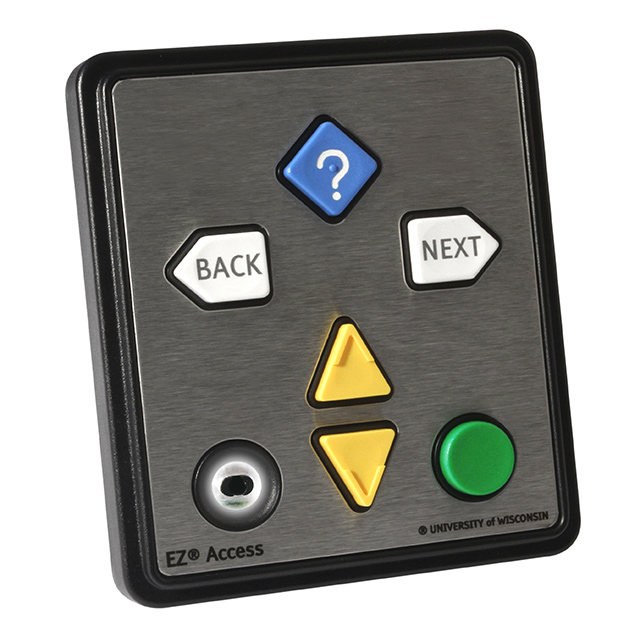

EZ06-23001
ActiveSTORM INTERFACE
SWITCH KEYPAD 6KEY NON-ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EZ06-23001
ActiveSTORM INTERFACE
SWITCH KEYPAD 6KEY NON-ILLUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EZ06-23001 |
|---|---|
| Approval Agency | FCC, CE, UL |
| Features | Audio Enabled |
| Illumination | Non-Illuminated |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Key Color | Multiple |
| Key Type | Polymer |
| Legend | Arrows, Help Button |
| Legend Color | White, Black |
| Legend Type | Fixed |
| Mounting Type | Panel Mount, Front or Rear |
| Number of Keys | 6 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | USB |
| Panel Cutout Dimensions [x] | 109.5 mm |
| Panel Cutout Dimensions [y] | 95.5 mm |
| Switch Type | Conductive Rubber |
| Termination Style | USB Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 232.70 | |
| 10 | $ 224.95 | |||
| 25 | $ 209.43 | |||
Description
General part information
EZ06-23001
Keypad Switch 6 Polymer Keys Conductive Rubber Contacts USB Output Non-Illuminated
