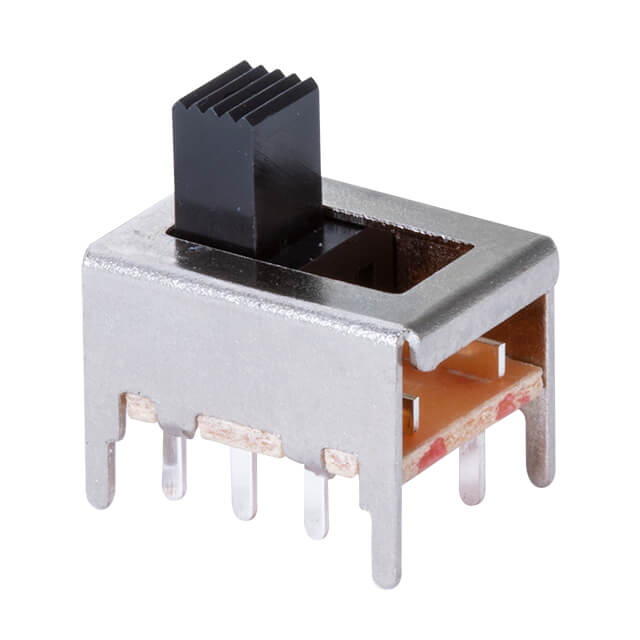

SLW-149610-5A-N-D
ActiveCUI Devices
14 X 9.8 X 10.3 MM, 5 MM RAISED
Deep-Dive with AI
Search across all available documentation for this part.
SLW-149610-5A-N-D
ActiveCUI Devices
14 X 9.8 X 10.3 MM, 5 MM RAISED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SLW-149610-5A-N-D |
|---|---|
| Actuator Length [x] | 5 mm |
| Actuator Material | Polyoxymethylene (Acetal) (POM) |
| Actuator Type | Standard |
| Circuit | DP3T |
| Contact Finish | Silver |
| Contact Material | Phosphor Bronze |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 300 mA |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole |
| Operating Force | 0.25 kgf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-On-On |
| Switch Travel | 3 mm |
| Termination Style | PC Pin |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.59 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.55 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.36 | |||
| 2500 | $ 0.34 | |||
| 5000 | $ 0.32 | |||
Description
General part information
SLW-149610-5A-N-D
Slide Switch DP3T Through Hole
