1-794079-0

Active

TE Connectivity AMP Connectors

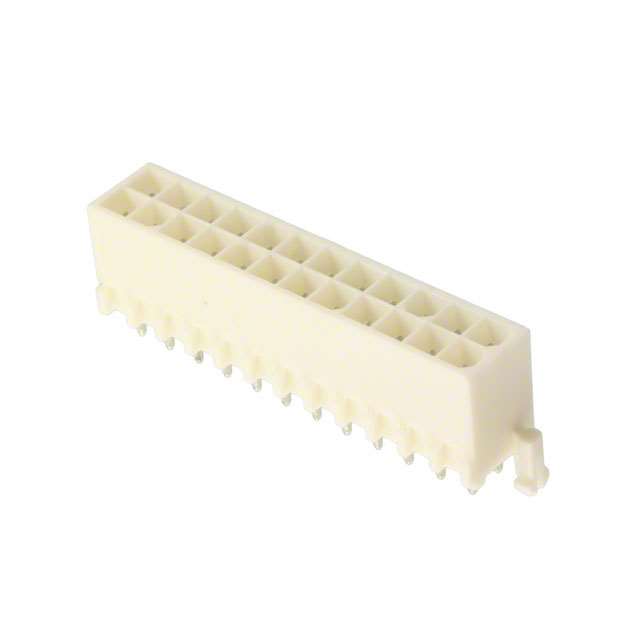

CONN HEADER VERT 24POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 24POS 4.14MM

Technical Specifications

Parameters and characteristics for this part

Specification	1-794079-0

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch - Mating	4.14 mm
Pitch - Mating	0.163 in
Row Spacing - Mating	4.14 mm
Row Spacing - Mating	0.163 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

CONN HEADER VERT 24POS 4.14MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Applications	Current Rating (Amps)	Contact Finish - Post	Contact Material	Insulation Material	Insulation Height	Insulation Height	Number of Rows	Contact Type	Mounting Type	Number of Positions	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Termination	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Connector Type	Voltage Rating	Style
TE Connectivity AMP Connectors 1-794079-0	150 Áin	3.81 Ám	85 °C	-20 C	White	All	4.45 mm	0.175 in	General Purpose	Varies by Wire Gauge	Tin	Brass	Nylon, Polyamide (PA)	13.5 mm	0.531 in	2	Male Pin	Through Hole	24	Locking Ramp	150 Áin	3.81 Ám	Shrouded - 4 Wall	Circular	4.14 mm	0.163 in	Solder	4.14 mm	0.163 in	UL94 V-0	Header	600 VAC	Board to Cable/Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 24 position 0.163" (4.14mm)
