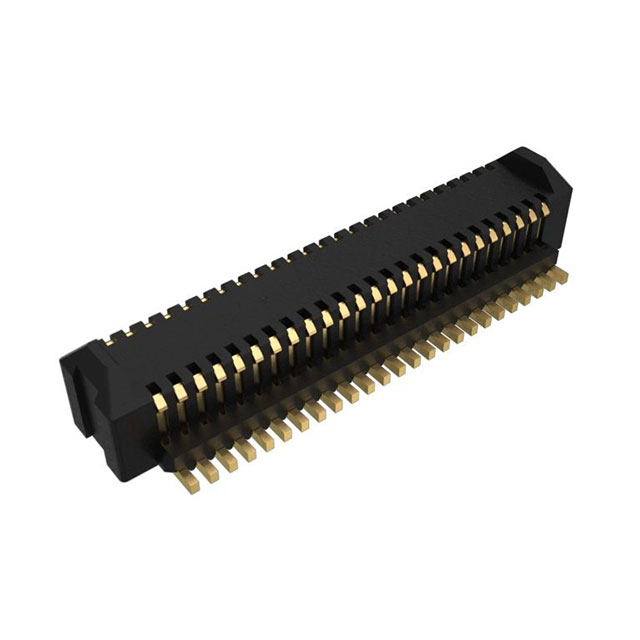

10156001-051100LF
ActiveAmphenol ICC (FCI)
BERGSTAK 0.50MM SELF-ALIGNMENT B
Deep-Dive with AI
Search across all available documentation for this part.
10156001-051100LF
ActiveAmphenol ICC (FCI)
BERGSTAK 0.50MM SELF-ALIGNMENT B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10156001-051100LF |
|---|---|
| Contact Finish | Gold |
| Height Above Board [z] | 0.081 in |
| Height Above Board [z] | 2.05 mm |
| Mated Stacking Heights | 3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.28 | |
| 10 | $ 1.45 | |||
| 25 | $ 1.28 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.13 | |||
| 500 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 2.28 | ||
| 10 | $ 1.45 | |||
| 25 | $ 1.28 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.13 | |||
| 500 | $ 1.08 | |||
| Tape & Reel (TR) | 1500 | $ 0.96 | ||
| 3000 | $ 0.94 | |||
| 4500 | $ 0.91 | |||
| 7500 | $ 0.86 | |||
| 10500 | $ 0.86 | |||
Description
General part information
10156001 Series
50 Position Connector Plug, Center Strip Contacts Surface Mount Gold
