2200/28GY-1000

Active

Daburn Electronics

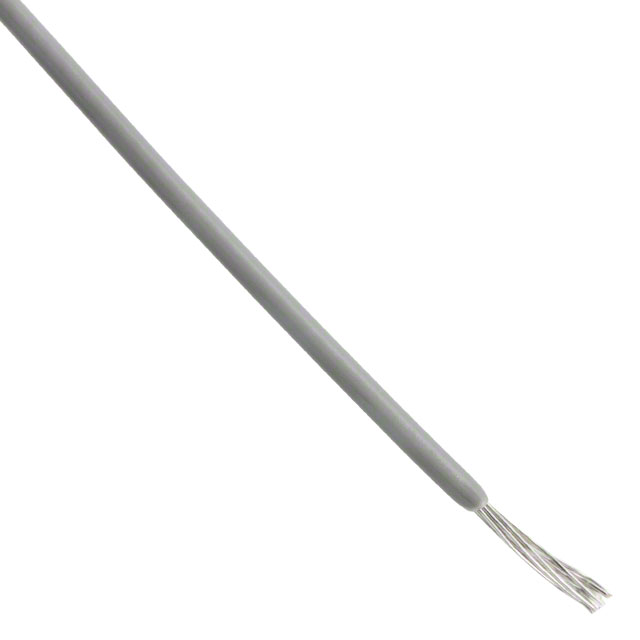

HOOK-UP STRND 28AWG GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2200/28GY-1000

Active

Daburn Electronics

HOOK-UP STRND 28AWG GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2200/28GY-1000	2200/28 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	36 AWG	36 AWG
Conductor Strand [custom]	7	7
Features	Abrasion Resistant	Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	0.89 mm	0.89 mm
Jacket (Insulation) Diameter [diameter]	0.035 in	0.035 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (XLPVC), Irradiated	Poly-Vinyl Chloride (XLPVC), Irradiated
Jacket (Insulation) Thickness	0.25 mm	0.25 mm
Jacket (Insulation) Thickness	0.01 in	0.01 in
Jacket Color	Gray	Brown, Orange, Gray, Violet
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Qualification	MIL-W-16878 Type B	MIL-W-16878 Type B
Ratings	UL Style 1429	UL Style 1429
Voltage	600 V	600 V
Wire Gauge	28 AWG	28 AWG

2200/28 Series

HOOK-UP STRND 28AWG BRN 100'

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Conductor Material	Qualification	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Jacket Color	Ratings	Jacket (Insulation) Material	Cable Type	Length	Length
Daburn Electronics 2200/28BR-100	0.25 mm	0.01 in	36 AWG	7	28 AWG	0.89 mm	0.035 in	Abrasion Resistant	Copper, Tinned	MIL-W-16878 Type B	600 V	105 ░C	-55 °C	30.5 m	100 ft	Brown	UL Style 1429	Poly-Vinyl Chloride (XLPVC), Irradiated	Hook-Up
Daburn Electronics 2200/28OR-100	0.25 mm	0.01 in	36 AWG	7	28 AWG	0.89 mm	0.035 in	Abrasion Resistant	Copper, Tinned	MIL-W-16878 Type B	600 V	105 ░C	-55 °C	30.5 m	100 ft	Orange	UL Style 1429	Poly-Vinyl Chloride (XLPVC), Irradiated	Hook-Up
Daburn Electronics 2200/28BR-1000	0.25 mm	0.01 in	36 AWG	7	28 AWG	0.89 mm	0.035 in	Abrasion Resistant	Copper, Tinned	MIL-W-16878 Type B	600 V	105 ░C	-55 °C			Brown	UL Style 1429	Poly-Vinyl Chloride (XLPVC), Irradiated	Hook-Up	1000 ft	304.8 m
Daburn Electronics 2200/28OR-1000	0.25 mm	0.01 in	36 AWG	7	28 AWG	0.89 mm	0.035 in	Abrasion Resistant	Copper, Tinned	MIL-W-16878 Type B	600 V	105 ░C	-55 °C			Orange	UL Style 1429	Poly-Vinyl Chloride (XLPVC), Irradiated	Hook-Up	1000 ft	304.8 m
Daburn Electronics 2200/28GY-1000	0.25 mm	0.01 in	36 AWG	7	28 AWG	0.89 mm	0.035 in	Abrasion Resistant	Copper, Tinned	MIL-W-16878 Type B	600 V	105 ░C	-55 °C			Gray	UL Style 1429	Poly-Vinyl Chloride (XLPVC), Irradiated	Hook-Up	1000 ft	304.8 m
Daburn Electronics 2200/28VI-100	0.25 mm	0.01 in	36 AWG	7	28 AWG	0.89 mm	0.035 in	Abrasion Resistant	Copper, Tinned	MIL-W-16878 Type B	600 V	105 ░C	-55 °C	30.5 m	100 ft	Violet	UL Style 1429	Poly-Vinyl Chloride (XLPVC), Irradiated	Hook-Up

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.12
		2000	$ 0.12
		3000	$ 0.11
		5000	$ 0.11
		7000	$ 0.11
		10000	$ 0.10
		25000	$ 0.10
		50000	$ 0.09
		100000	$ 0.09

Description

General part information

2200/28 Series

28 AWG Hook-Up Wire 7/36 Gray 600V 1000.0' (304.8m)
