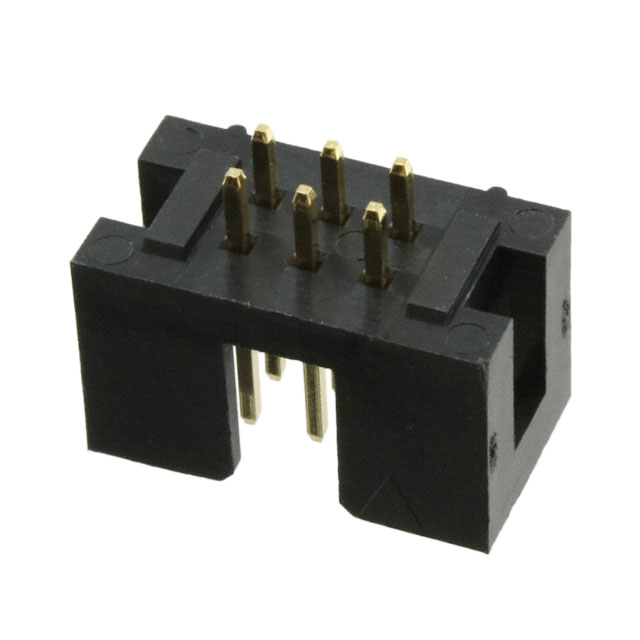

30306-6002HB

Active

CONN HEADER VERT 6POS 2.54MM

Search across all available documentation for this part.

Active

CONN HEADER VERT 6POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	30306-6002HB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.366 in
Insulation Height	9.3 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

CONN HEADER VERT 6POS 2.54MM

Part	Style	Number of Positions	Features	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Finish - Mating	Contact Material	Termination	Contact Type	Shrouding	Contact Finish Thickness - Post	Number of Rows	Contact Length - Mating	Contact Length - Mating	Insulation Color	Fastening Type	Insulation Material	Connector Type	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height
3M 30306-6002HB	Board to Board, Cable	6	Keying Slot	UL94 V-0	Gold	All	Flash	0.1 in	2.54 mm	Square	2.54 mm	0.1 in	Through Hole	Gold	Brass	Solder	Male Pin	Shrouded - 4 Wall	Flash	2	6 mm	0.236 in	Black	Push-Pull	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	Header	0.11 in	2.79 mm	105 ░C	-55 °C	0.366 in	9.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.100" (2.54mm)
