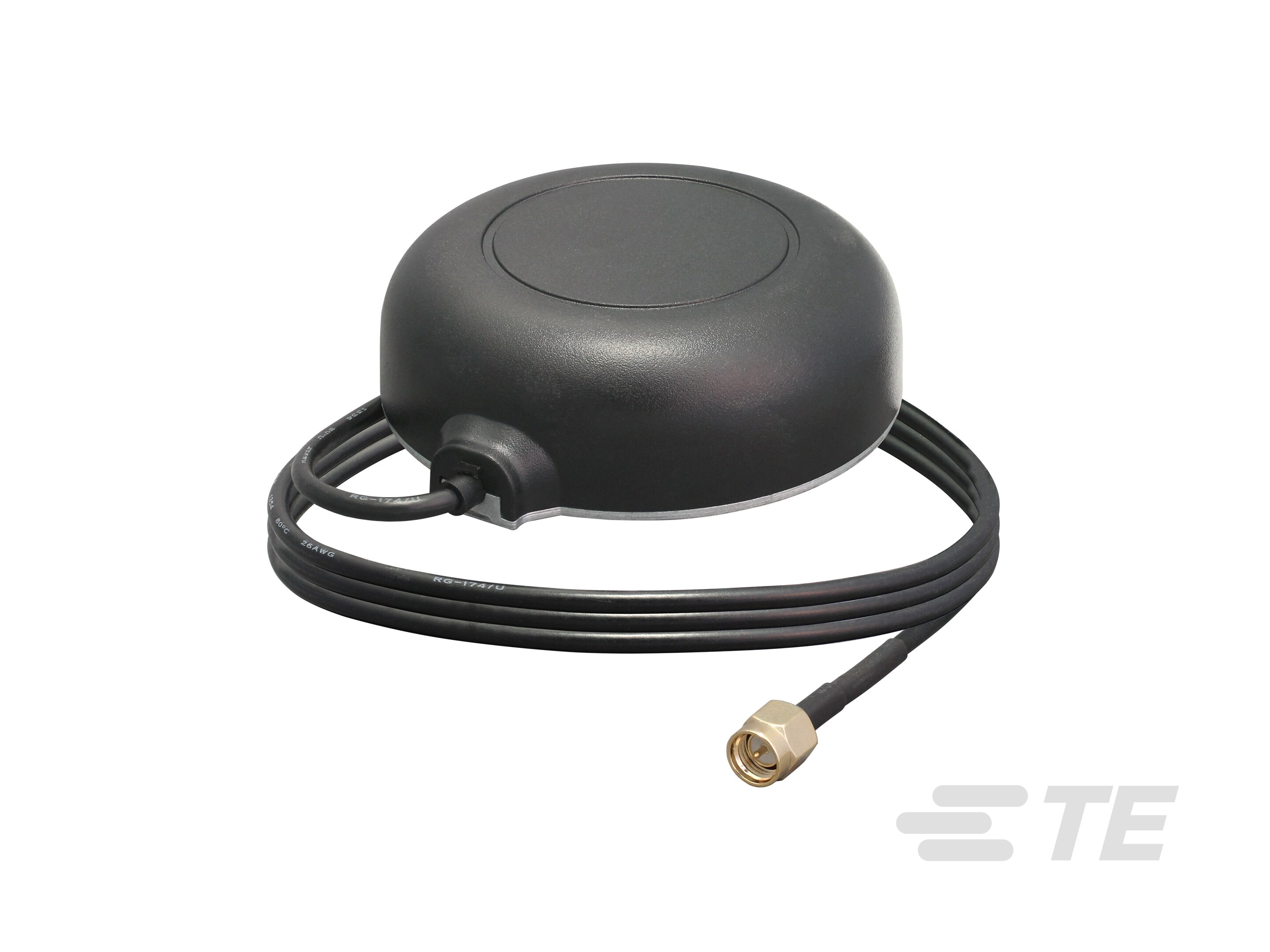

Specification	ANT-GNRM-L125A-1

Antenna Type	Module
Applications	GLONASS, GNSS, Galileo, BEIDOU, GPS
Features	LNA, Cable, 1m
Frequency (Center/Band)	1.6015GHz, 1.561GHz, 1.575GHz, 1.2045GHz, 1.247GHz, 1.1176GHz, 1.228GHz
Frequency (Center/Band) - 1	1.1176 GHz
Frequency (Center/Band) - 2	1.2045 GHz
Frequency (Center/Band) - 3	1.228 GHz
Frequency (Center/Band) - 4	1.247 GHz
Frequency (Center/Band) - 5	1.561 GHz
Frequency (Center/Band) - 6	1.575 GHz
Frequency (Center/Band) - 7	1.6015 GHz
Frequency Group	UHF
Frequency Group Maximum (UHF)	2 GHz
Frequency Group Minimum (UHF)	1 GHz
Frequency Range (Band 1) Maximum	1.207 GHz
Frequency Range (Band 1) Minimum	1.202 GHz
Frequency Range (Band 2) Maximum	1.248 GHz
Frequency Range (Band 2) Minimum	1.246 GHz
Frequency Range (Band 3) Maximum	1.602 GHz
Frequency Range (Band 3) Minimum	1.601 GHz
Gain	31.5 dBi, 29.8 dBi, 23.3 dBi, 31 dBi, 30.7 dBi, 30.6 dBi, 31.7 dBi
Height (Max)	0.866 in
Ingress Protection	IP67
Mounting Type	Magnetic
Number of Bands	7
Return Loss	-13.8dB, -15.7dB, -12.4dB, -18.4dB, -21.8dB
Return Loss	-12.4 dB, -15.7 dB, -13.8 dB, -18.4 dB, -21.8 dB
RF Family/Standard	Navigation
Termination Type	SMA Male
VSWR	1.5, 1.6, 1.4, 1.3, 1.2
