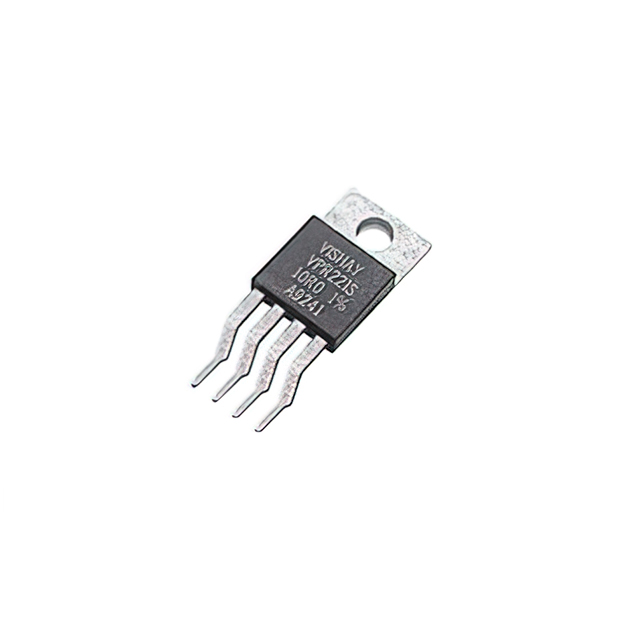

Y212350R1300C0L
ActiveVPG Foil Resistors
VPR221SZ 50R130 0.25%
Y212350R1300C0L
ActiveVPG Foil Resistors
VPR221SZ 50R130 0.25%
Description
General part information
Y212350R1300C0L
50.13 Ohms ±0.25% 8W Chip Resistor TO-220-4 Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y212350R1300C0L |
|---|---|
| Composition | Metal Foil |
| Features | Non-Inductive |
| Height - Seated (Max) | 0.158 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-220-4 |
| Package Name | TO-220-4 |
| Power (Watts) | 8 W |
| Resistance | 50.13 Ohms |
| Size / Dimension Length | 0.4 in |
| Size / Dimension Width | 0.36 in |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 0.25 % |
