ST1124-11-401-A

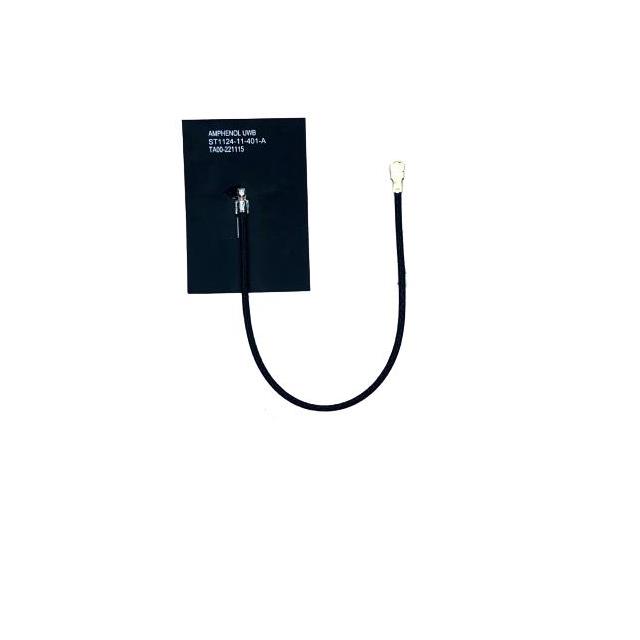

RF ANTENNA UWB Flat Patch IPEX MHF1 Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | ST1124-11-401-A |
|---|---|
| Antenna Type | Flat Patch |
| Applications | UWB |
| Features | Cable, 85mm |
| Frequency (Center/Band) | 8.185GHz, 3.96GHz, 5.545GHz, 7.13GHz |
| Frequency (Center/Band) - 1 | 3.96 GHz |
| Frequency (Center/Band) - 2 | 5.545 GHz |
| Frequency (Center/Band) - 3 | 7.13 GHz |
| Frequency (Center/Band) - 4 | 8.185 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 4.74 GHz |
| Frequency Range (Band 1) Minimum | 3.18 GHz |
| Frequency Range (Band 2) Maximum | 6.33 GHz |
| Frequency Range (Band 2) Minimum | 4.76 GHz |
| Frequency Range (Band 3) Maximum | 7.91 GHz |
| Frequency Range (Band 3) Minimum | 6.35 GHz |
| Frequency Range (Band 4) Maximum | 8.44 GHz |
| Frequency Range (Band 4) Minimum | 7.93 GHz |
| Gain | 3.6 dBi, 4.5 dBi, 4.3 dBi |
| Height (Max) | 0.008 in |
| Mounting Type | Adhesive |
| Number of Bands | 4 |
| Power - Max | 1 VA |
| Return Loss | -10 dB |
| RF Family/Standard | Cellular |
| Termination | IPEX MHF1, I-PEX MHF1 |
