Description
General part information
AMM150PS15

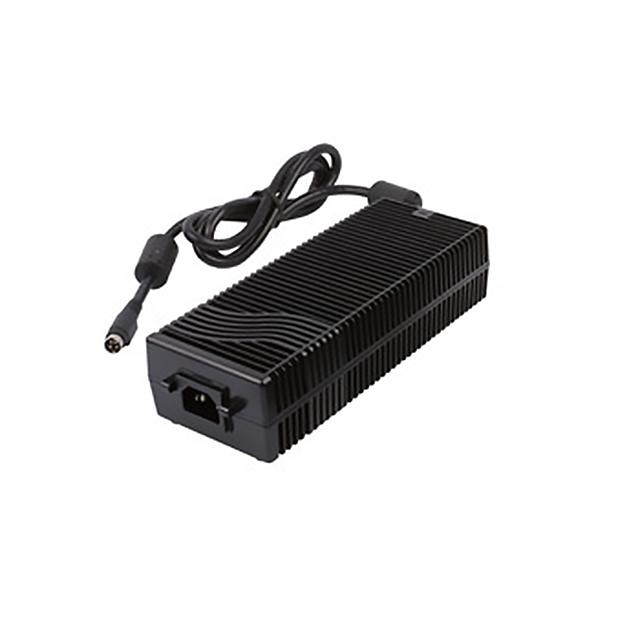

15V 144 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AMM150PS15 |
|---|---|
| Applications | Medical |
| Approval Agency | cUL |
| Cord Length | 6.5 ft |
| Current - Output (Max) | 9.6 A |
| Efficiency | 85 % |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | DIN |
| Output Connector Position | 4 Position |
| Power (Watts) | 144 W |
| Region Utilized | International |
| Size / Dimension Height | 1.96 in |
| Size / Dimension Length | 8.17 in |
| Size / Dimension Width | 3.23 in |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 80 V |
| Voltage - Output | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
