SMDAU80SN20-3inch-0.762mm
ActiveChip Quik Inc.

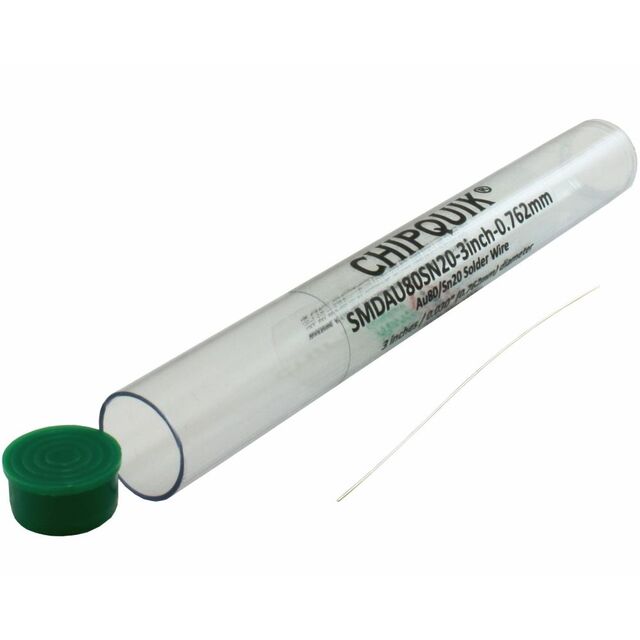

SOLDER SOLDER WIRE (AU80/SN20) GOLD/TIN EUTECTIC 0.030"/0.762MM DIAMETER - 3 INCHES
SMDAU80SN20-3inch-0.762mm
ActiveChip Quik Inc.
SOLDER SOLDER WIRE (AU80/SN20) GOLD/TIN EUTECTIC 0.030"/0.762MM DIAMETER - 3 INCHES
Description
General part information
SMDAU80SN20-3inch-0.762mm
Lead Free Wire Solder Au80Sn20 (80/20) Spool
Technical Specifications
Parameters and characteristics for this part
| Specification | SMDAU80SN20-3inch-0.762mm |
|---|---|
| Au Composition | 80 % |
| Composition Elements | Sn, Au |
| Composition Formula | Au80Sn20 |
| Diameter | 0.03 in |
| Form | Spool |
| Melting Point | 526 °F |
| Process | Lead Free |
| Shelf Life | 60 Months |
| Sn Composition | 20 % |
| Type | Wire Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
