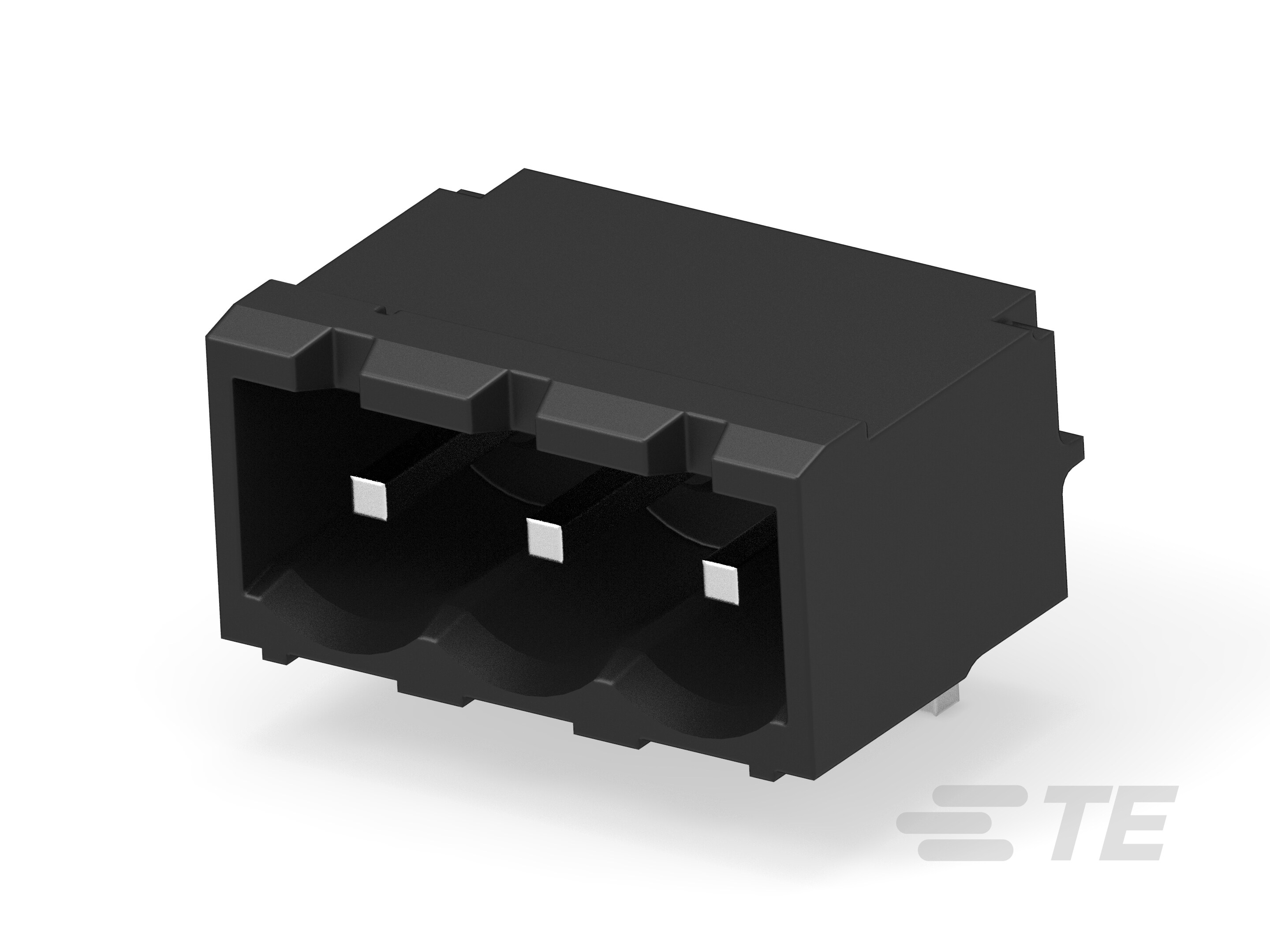

Specification	2-2342083-0

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.102 in
Current - UL	11 A
Features	High Temp Housing
Header Orientation	Right Angle
Header Orientation Angle	90 °
Housing Material	Nylon, Polyamide, PA
Insulation Height	0.341 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	20
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	5.08 mm
Positions Per Level	20
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V

2342083 Series

Part	Contact Tail Length	Insulation Height	Contact Material	Housing Material	Material Flammability Rating	Termination Style	Mounting Type	Number of Positions	Number of Levels	Operating Temperature (Min)	Operating Temperature (Max)	Type	Current - UL	Positions Per Level	Color	Header Orientation Angle	Header Orientation	Voltage - UL	Contact Mating Finish	Pitch	Features

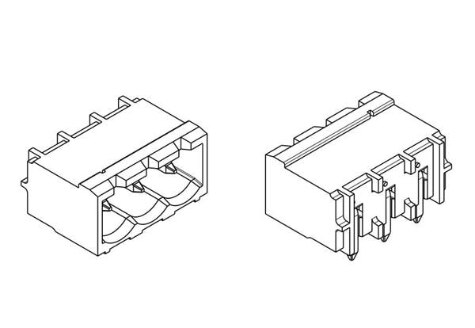

TE Connectivity AMP Connectors 1-2342083-2	0.102 in	0.341 in	Copper Alloy	Nylon PA Polyamide	UL94 V-0	Solder	Through Hole	12	1	-40 °C	105 °C	Header Male Pins Shrouded (4 Side)	11 A	12	Black	90 °	Right Angle	300 V	Tin	5.08 mm	High Temp Housing
TE Connectivity AMP Connectors 2-2342083-3	0.102 in	0.341 in	Copper Alloy	Nylon PA Polyamide	UL94 V-0	Solder	Through Hole	23	1	-40 °C	105 °C	Header Male Pins Shrouded (4 Side)	11 A	23	Black	90 °	Right Angle	300 V	Tin	5.08 mm	High Temp Housing
TE Connectivity AMP Connectors 1-2342083-9	0.102 in	0.341 in	Copper Alloy	Nylon PA Polyamide	UL94 V-0	Solder	Through Hole	19	1	-40 °C	105 °C	Header Male Pins Shrouded (4 Side)	11 A	19	Black	90 °	Right Angle	300 V	Tin	5.08 mm	High Temp Housing

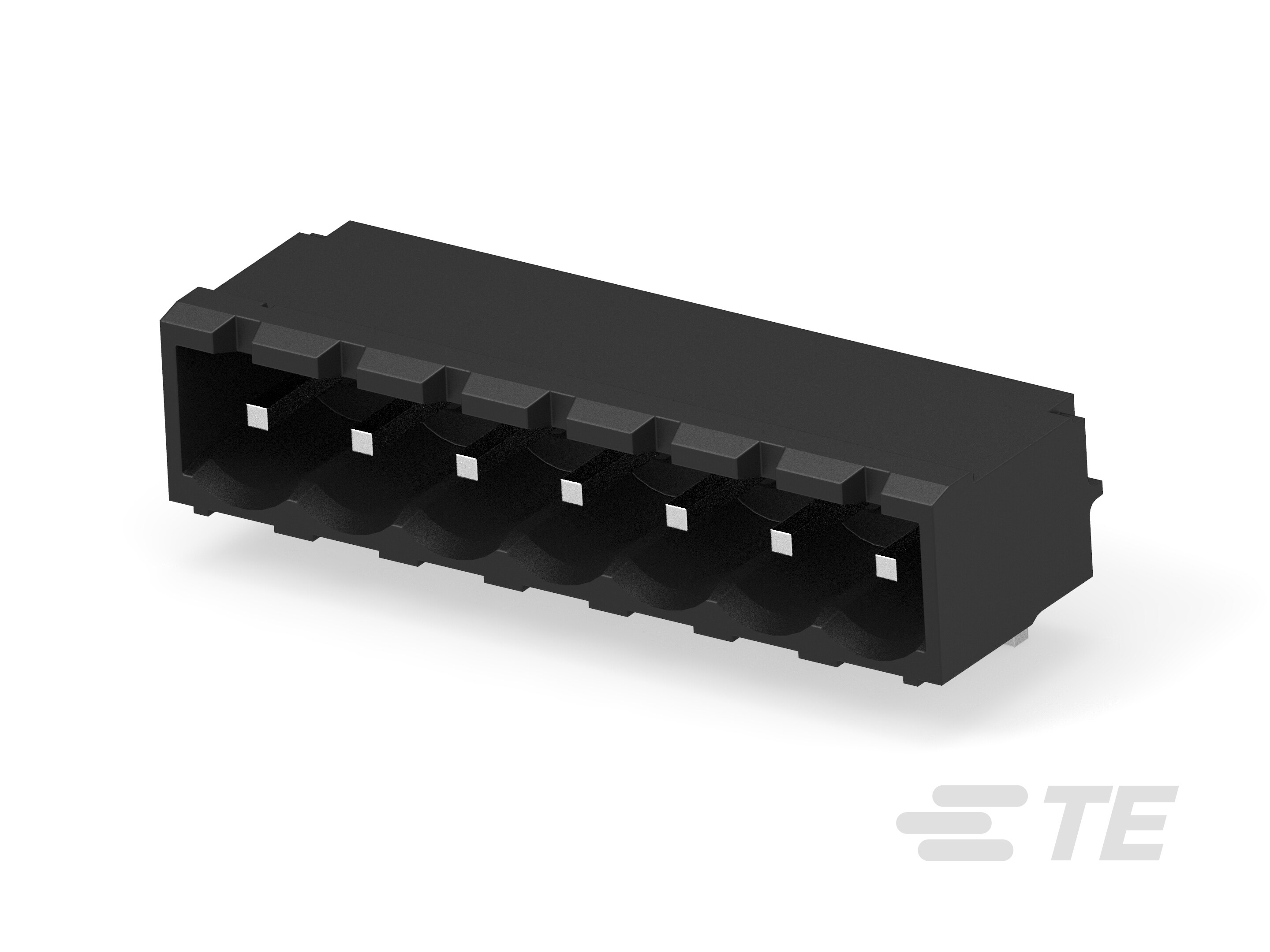

TE Connectivity AMP Connectors 2342083-7	0.102 in	0.341 in	Copper Alloy	Nylon PA Polyamide	UL94 V-0	Solder	Through Hole	7	1	-40 °C	105 °C	Header Male Pins Shrouded (4 Side)	11 A	7	Black	90 °	Right Angle	300 V	Tin	5.08 mm	High Temp Housing
TE Connectivity AMP Connectors 1-2342083-7	0.102 in	0.341 in	Copper Alloy	Nylon PA Polyamide	UL94 V-0	Solder	Through Hole	17	1	-40 °C	105 °C	Header Male Pins Shrouded (4 Side)	11 A	17	Black	90 °	Right Angle	300 V	Tin	5.08 mm	High Temp Housing

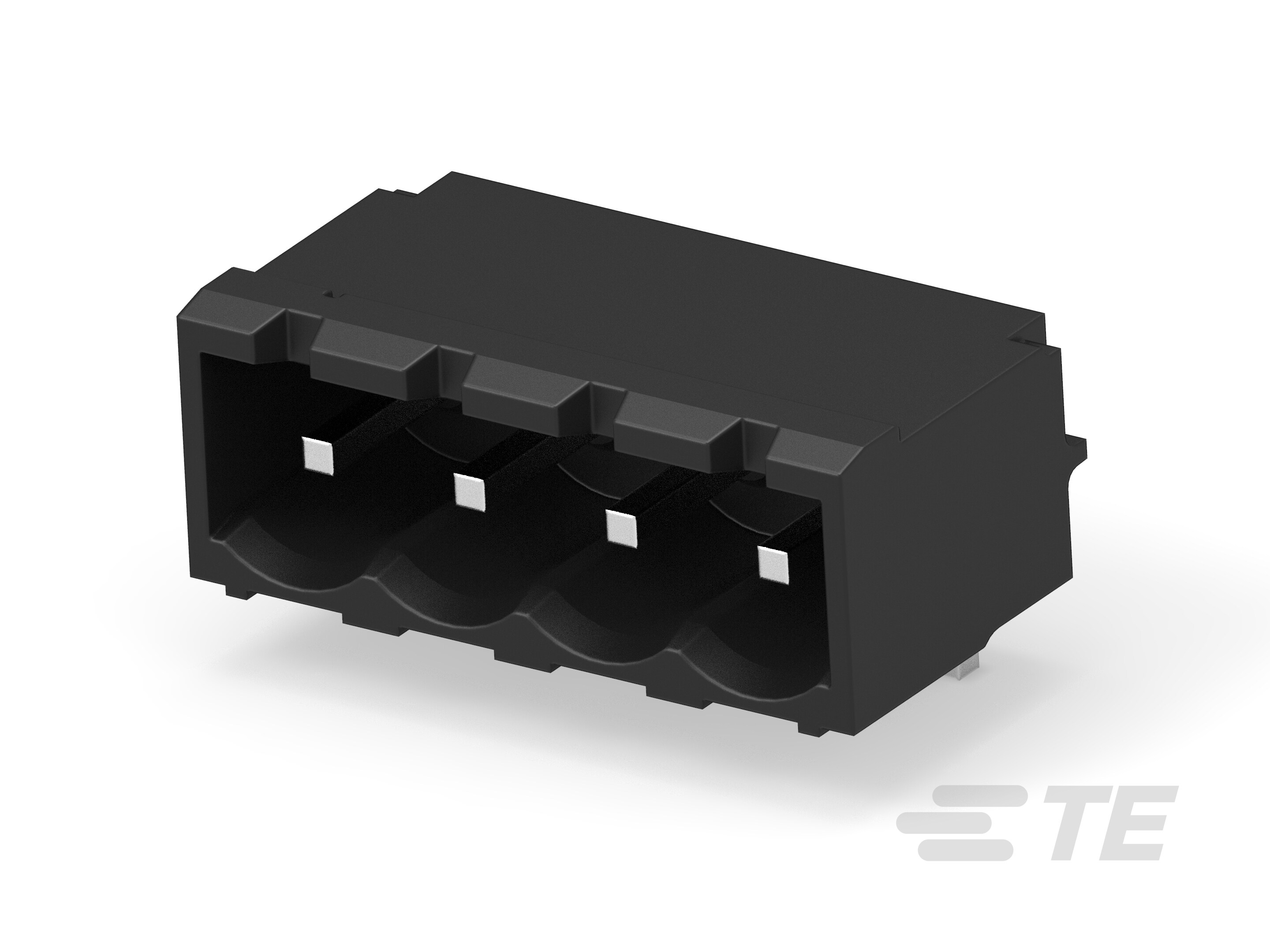

TE Connectivity AMP Connectors 2342083-4	0.102 in	0.341 in	Copper Alloy	Nylon PA Polyamide	UL94 V-0	Solder	Through Hole	4	1	-40 °C	105 °C	Header Male Pins Shrouded (4 Side)	11 A	4	Black	90 °	Right Angle	300 V	Tin	5.08 mm	High Temp Housing
TE Connectivity AMP Connectors 1-2342083-6	0.102 in	0.341 in	Copper Alloy	Nylon PA Polyamide	UL94 V-0	Solder	Through Hole	16	1	-40 °C	105 °C	Header Male Pins Shrouded (4 Side)	11 A	16	Black	90 °	Right Angle	300 V	Tin	5.08 mm	High Temp Housing
TE Connectivity AMP Connectors 1-2342083-0	0.102 in	0.341 in	Copper Alloy	Nylon PA Polyamide	UL94 V-0	Solder	Through Hole	10	1	-40 °C	105 °C	Header Male Pins Shrouded (4 Side)	11 A	10	Black	90 °	Right Angle	300 V	Tin	5.08 mm	High Temp Housing
TE Connectivity AMP Connectors 1-2342083-4	0.102 in	0.341 in	Copper Alloy	Nylon PA Polyamide	UL94 V-0	Solder	Through Hole	14	1	-40 °C	105 °C	Header Male Pins Shrouded (4 Side)	11 A	14	Black	90 °	Right Angle	300 V	Tin	5.08 mm	High Temp Housing
TE Connectivity AMP Connectors 1-2342083-3	0.102 in	0.341 in	Copper Alloy	Nylon PA Polyamide	UL94 V-0	Solder	Through Hole	13	1	-40 °C	105 °C	Header Male Pins Shrouded (4 Side)	11 A	13	Black	90 °	Right Angle	300 V	Tin	5.08 mm	High Temp Housing
